DPDT illuminated rocker switch featuring a black polyamide concave actuator. Rated for 6A at 125VAC and 30VDC, with silver contacts and silver plating. Offers a 25,000 cycle electrical life and 50,000 cycle mechanical life. Mounts via through-hole with vertical orientation and PC pin terminations. Operating temperature range from -30°C to 85°C.
Current Rating6A
MountingThrough Hole, Vertical, Brackets
Quick Jump:
Technical Specifications
NKK Switches M2022TXW41-DA technical specifications.
General
Actuator Color
Black
Actuator Material
Polyamide
Actuator Type
Concave (Standard V)
Contact Material
Silver
Contact Plating
Silver
Current Rating
6A
Depth
35.49mm
Electrical Life
25000Cycles
Illumination Type
Illuminated
Lead Free
Lead Free
Length
12.7mm
Max Current Rating
6A
Max Operating Temperature
85°C
Mechanical Life
50000Cycles
Min Operating Temperature
-30°C
Max Voltage Rating (AC)
250V
Max Voltage Rating (DC)
30V
Mount
Through Hole, Vertical, Brackets
Orientation
Vertical
Packaging
Tray
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
M
Switch Function
On-On
Termination
PC Pins
Throw Configuration
DPDT
Voltage Rating (AC)
125V
DC Rated Voltage
30V
Compliance
RoHS
Compliant
Datasheet
NKK Switches M2022TXW41-DA Datasheet
Download the complete datasheet for NKK Switches M2022TXW41-DA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

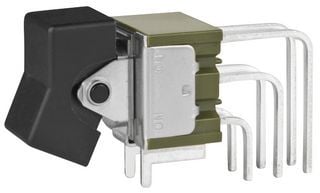

Product Images
