DPDT toggle switch with ON-OFF-ON function, featuring PC pins for PC mounting. Rated for 6A at 250VAC and 30VDC, with a mechanical life of 100,000 cycles and electrical life of 25,000 cycles. The switch has a brass, chrome-plated brass bat lever actuator and silver contacts. Operating temperature range is -30°C to 85°C, with a flammability rating of UL94 V-0.
Current Rating6A
MountingPanel
Quick Jump:
Technical Specifications
NKK Switches M2023SS1W03 technical specifications.
General
| Actuator Color | Chrome |
| Actuator Length | 10.5mm |
| Actuator Material | Brass, Chrome |
| Actuator Type | Standard Round |
| Color | Multiple |
| Contact Material | Silver |
| Contact Plating | Silver |
| Current Rating | 6A |
| Depth | 12.7mm |
| Electrical Life | 25000Cycles |
| Flammability Rating | UL94 V-0 |
| Illumination Type | Non-Illuminated, Illuminated |
| Lead Free | Lead Free |
| Length | 13mm |
| Life (Hours) | 25000Hour |
| Max Current Rating | 6A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -30°C |
| Max Voltage Rating (AC) | 250V |
| Max Voltage Rating (DC) | 30V |
| Mechanical Life | 100000Cycles |
| Mount | Panel |
| Number of Poles | 2 |
| Number of Positions | 3 |
| Orientation | Straight |
| Package Quantity | 1 |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | M |
| Switch Function | On-Off-On |
| Termination | PC Pin |
| Throw Configuration | DPDT |
| Voltage Rating (AC) | 250V |
| DC Rated Voltage | 30V |
| Width | 12.7mm |
Compliance
| RoHS | Compliant |
Datasheet
NKK Switches M2023SS1W03 Datasheet
Download the complete datasheet for NKK Switches M2023SS1W03 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

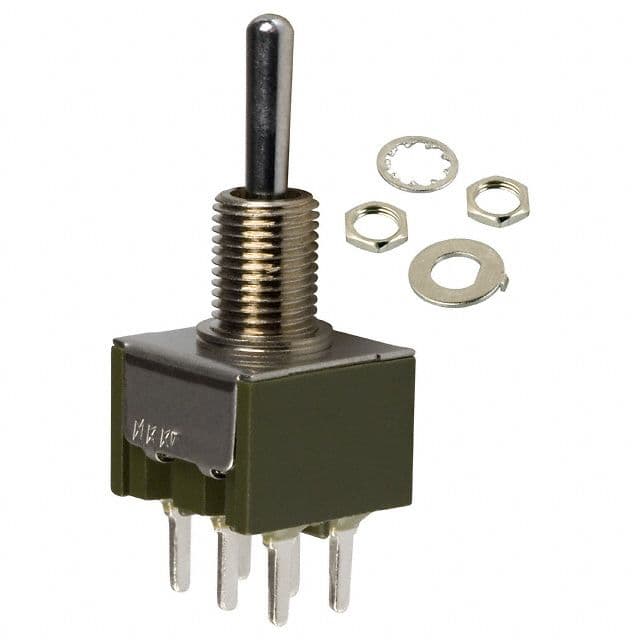

Product Images
