3PDT toggle switch featuring a small bat lever actuator with a 6.86mm brass, chrome-plated body. Offers PC pin termination for PC mounting with bracket, rated for 0.1A at 28VAC/28VDC, with a 0.4VA power handling capacity. This non-illuminated switch boasts gold-plated copper contacts and an electrical life of 50,000 cycles. Operating temperature range is -30°C to 85°C, with RoHS compliance.
MountingThrough Hole, Vertical
Quick Jump:
Technical Specifications
NKK Switches M2032S2A2G40 technical specifications.
General
| Actuator Length | 6.86mm |
| Actuator Material | Brass, Chrome |
| Actuator Type | Standard Round |
| Contact Material | Copper |
| Contact Plating | Gold |
| Depth | 37.23mm |
| Electrical Life | 50000Cycles |
| Illumination Type | Non-Illuminated, Illuminated |
| Lead Free | Lead Free |
| Length | 17.5mm |
| Max Current Rating | 100mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -30°C |
| Max Voltage Rating (AC) | 28V |
| Max Voltage Rating (DC) | 28V |
| Mount | Through Hole, Vertical |
| Package Quantity | 1 |
| Packaging | Tray |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | M |
| Switch Function | On-On |
| Termination | PC Pin |
| Throw Configuration | 3PDT |
| Voltage Rating (AC) | 28V |
| DC Rated Voltage | 28V |
Compliance
| RoHS | Compliant |
Datasheet
NKK Switches M2032S2A2G40 Datasheet
Download the complete datasheet for NKK Switches M2032S2A2G40 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

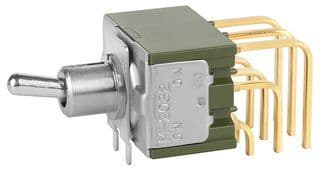

Product Images
