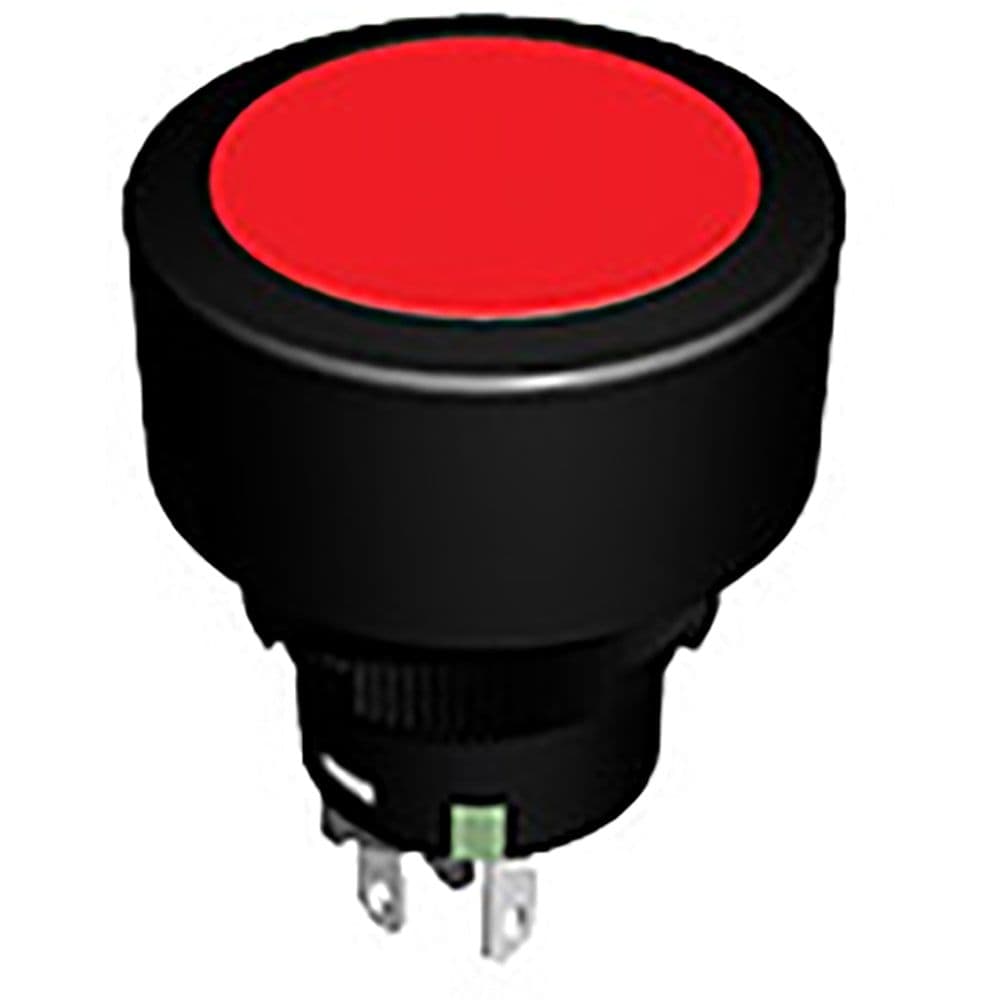

SPDT momentary pushbutton switch with PC pin termination and bracket mount. Features a brass round button actuator, copper contacts with gold plating, and a 0.1A/28VAC/28VDC rating. Offers 100,000 electrical cycles and 200,000 mechanical cycles, with a UL94 V-0 flammability rating. Operates within a -30°C to 85°C temperature range.
Current Rating1A
MountingThrough Hole
Quick Jump:
Technical Specifications
NKK Switches M2B15AA5G13-FA technical specifications.
General
Actuator Material
Brass
Actuator Type
Round, Button
Contact Material
Copper
Contact Plating
Gold
Current Rating
1A
Depth
8mm
Electrical Life
100000Cycles
Flammability Rating
UL94 V-0
Height
1.005inch
Lead Free
Lead Free
Length
0.64inch
Max Current Rating
100mA
Max Operating Temperature
85°C
Min Operating Temperature
-30°C
Max Voltage Rating (AC)
28V
Max Voltage Rating (DC)
28V
Mechanical Life
200000Cycles
Mount
Through Hole
Orientation
Vertical
Package Quantity
1
Packaging
Tray
RoHS Compliant
Yes
Series
M2
Switch Function
On-Mom
Termination
PC Pin
Throw Configuration
SPDT
Voltage Rating (AC)
28V
DC Rated Voltage
28V
Compliance
RoHS
Compliant
Datasheet
NKK Switches M2B15AA5G13-FA Datasheet
Download the complete datasheet for NKK Switches M2B15AA5G13-FA to view detailed technical specifications.
