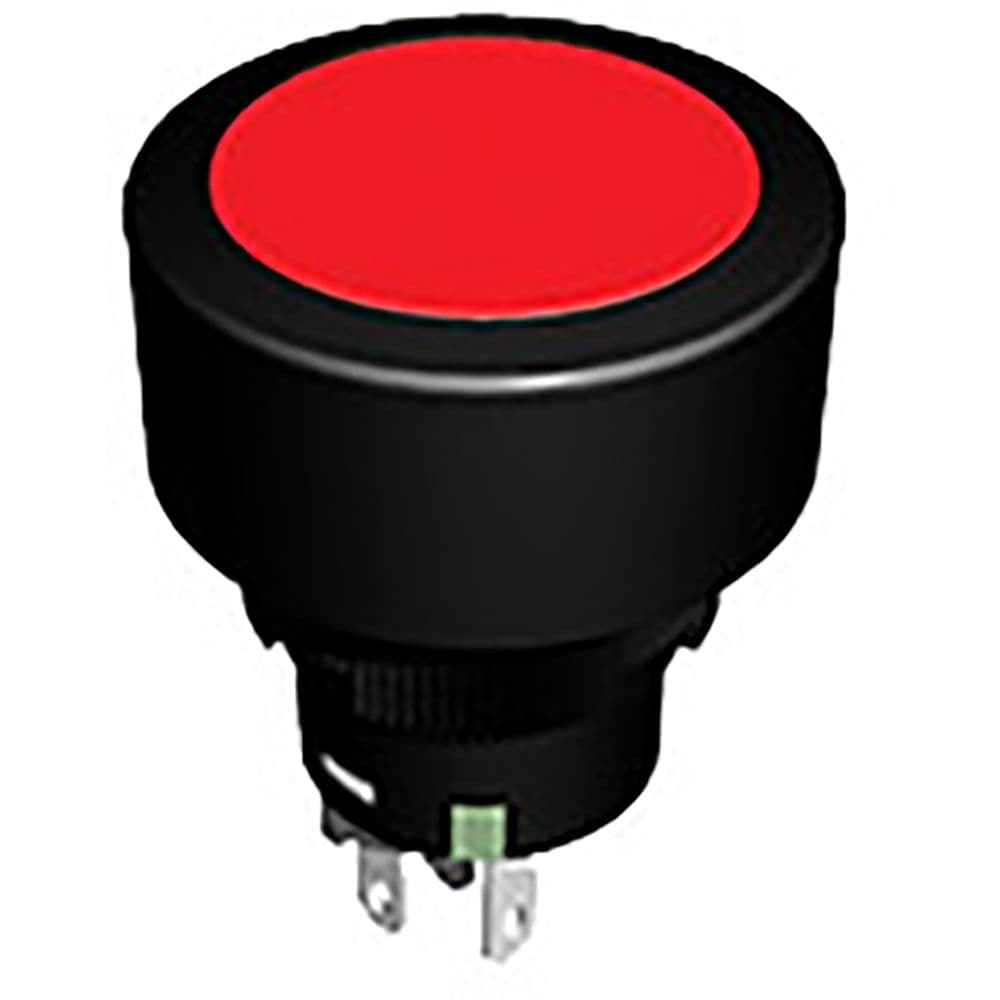

SPDT illuminated pushbutton switch featuring a black, round button actuator. This through-hole, right-angle mounted component offers PC pin termination and a process-sealed design. Rated for 0.4VA (AC/DC) at 28V, it boasts a 1A current rating and a 100mA max current. Electrical life is 100,000 cycles, with a mechanical life of 200,000 cycles. Operating temperature range is -30°C to 85°C, with a UL94 V-0 flammability rating.
Current Rating1A
MountingThrough Hole, Vertical
Quick Jump:
Technical Specifications
NKK Switches M2B15AA5G40-FA technical specifications.
General
| Actuator Material | Brass |
| Actuator Type | Round, Button |
| Contact Material | Copper |
| Contact Plating | Gold |
| Current Rating | 1A |
| Depth | 34.92mm |
| Electrical Life | 100000Cycles |
| Flammability Rating | UL94 V-0 |
| Illumination Color | Black |
| Lead Free | Lead Free |
| Length | 7.2mm |
| Max Current Rating | 100mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -30°C |
| Max Voltage Rating (AC) | 28V |
| Max Voltage Rating (DC) | 28V |
| Mechanical Life | 200000Cycles |
| Mount | Through Hole, Vertical |
| Package Quantity | 1 |
| Packaging | Bulk |
| RoHS Compliant | Yes |
| Series | M2 |
| Switch Function | On-Mom |
| Termination | PC Pin |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 28V |
| DC Rated Voltage | 28V |
Compliance
| RoHS | Compliant |
Datasheet
NKK Switches M2B15AA5G40-FA Datasheet
Download the complete datasheet for NKK Switches M2B15AA5G40-FA to view detailed technical specifications.
