NKK Switches
M2B15AA5W03-HA
Switch Push Button ON (ON) SPDT Round Plunger 1A 125VAC 30VDC Momentary Contact Thru-Hole PC Pins
Current Rating1A
MountingThrough Hole
Quick Jump:
Technical Specifications
NKK Switches M2B15AA5W03-HA technical specifications.
General
Actuator Type
Round, Button
Contact Plating
Silver
Current Rating
1A
Electrical Life
25000Cycles
Max Operating Temperature
85°C
Mechanical Life
200000Cycles
Min Operating Temperature
-30°C
Mount
Through Hole
Package Quantity
1
Packaging
Bulk
RoHS Compliant
Yes
Series
M2
Switch Function
On-Mom
Termination
PC Pin
Throw Configuration
SPDT
Voltage Rating (AC)
125V
DC Rated Voltage
30V
Compliance
RoHS
Compliant
Datasheet
NKK Switches M2B15AA5W03-HA Datasheet
Download the complete datasheet for NKK Switches M2B15AA5W03-HA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

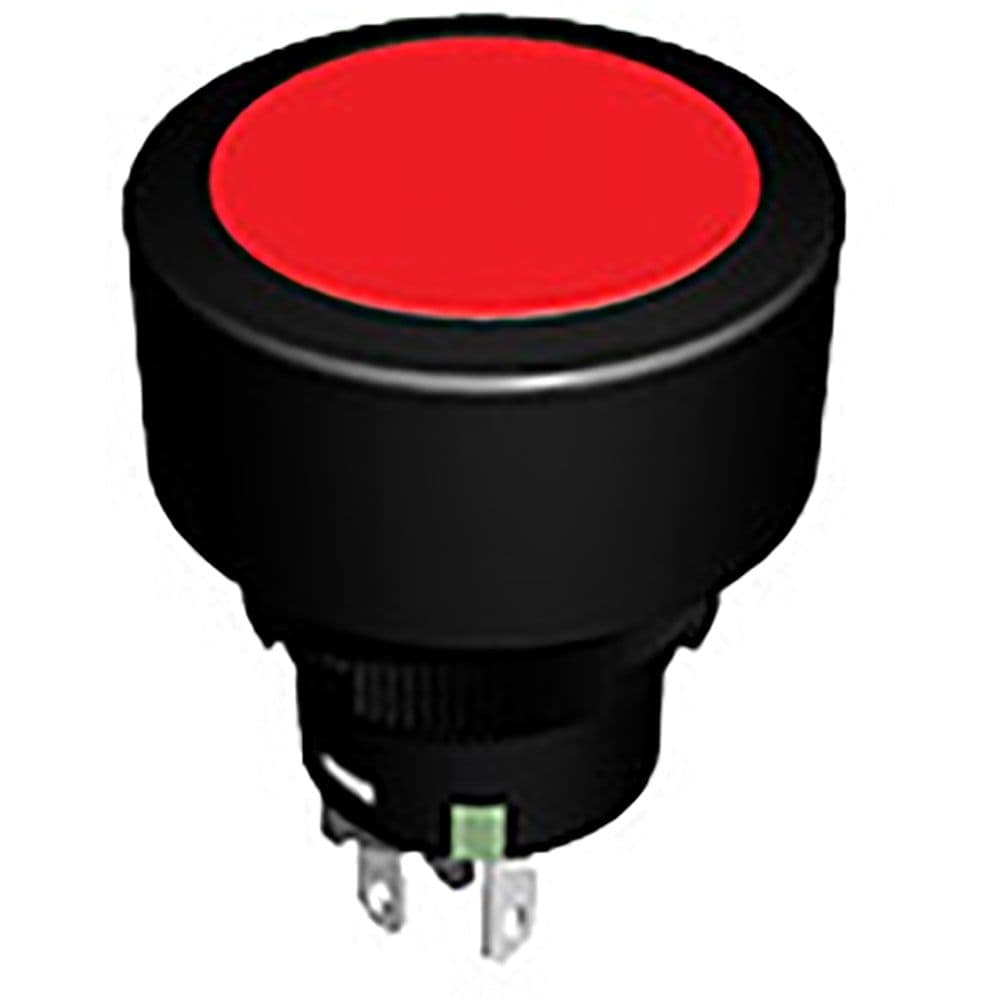

Product Images
