NKK Switches
M2B15BA5G40-BH
Switch Push Button ON (ON) SPDT Round Plunger 0.1A 28VAC 28VDC 0.4VA Momentary Contact PC Pins Thru-Hole
Package315
Current Rating1A
MountingThrough Hole, Vertical
Quick Jump:
Technical Specifications
NKK Switches M2B15BA5G40-BH technical specifications.
General
| Actuator Type | Round, Button |
| Package/Case | 315 |
| Contact Plating | Gold |
| Current Rating | 1A |
| Electrical Life | 100000Cycles |
| Max Operating Temperature | 85°C |
| Mechanical Life | 200000Cycles |
| Min Operating Temperature | -30°C |
| Mount | Through Hole, Vertical |
| Packaging | Bulk |
| RoHS Compliant | Yes |
| Series | M2 |
| Switch Function | On-Mom |
| Termination | PC Pin |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 28V |
| DC Rated Voltage | 28V |
Compliance
| RoHS | Compliant |
Datasheet
NKK Switches M2B15BA5G40-BH Datasheet
Download the complete datasheet for NKK Switches M2B15BA5G40-BH to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

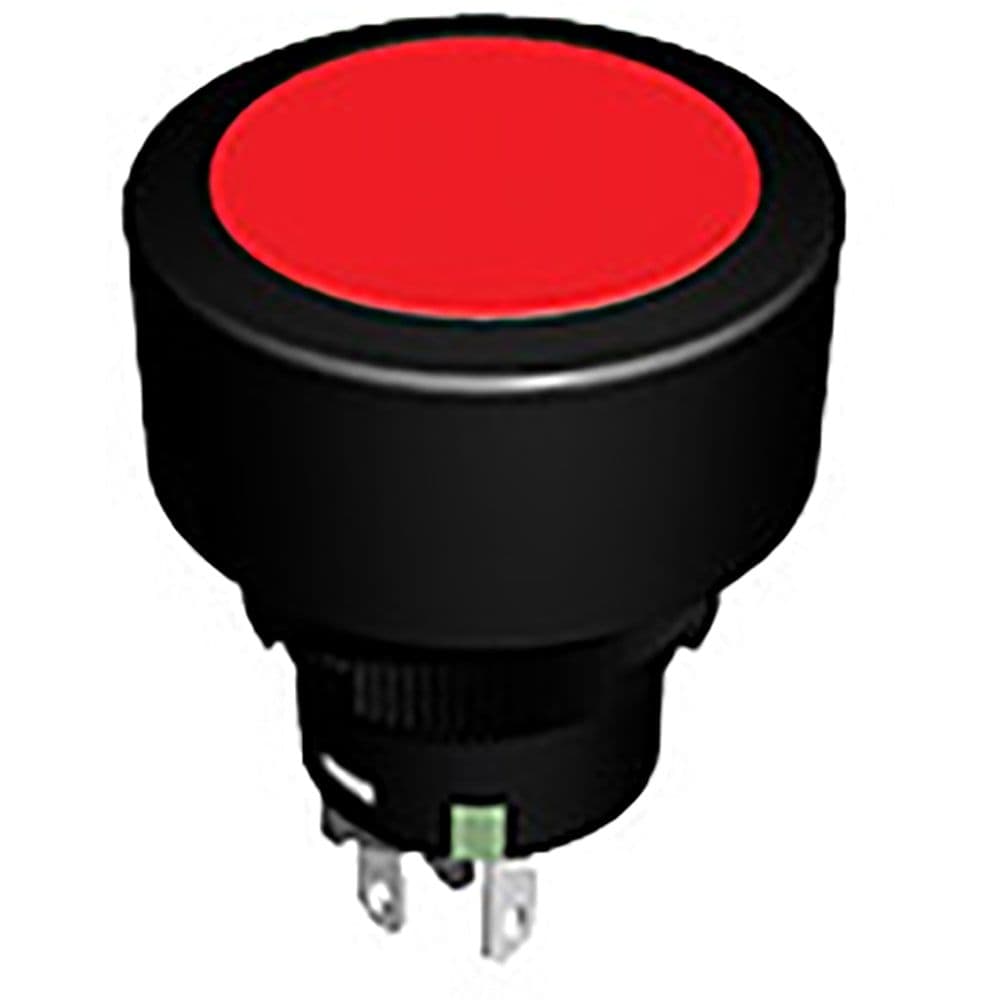

Product Images
