The M2B25AA5G03-FA is a round button switch with a current rating of 1A and a voltage rating of 28V. It features a gold contact plating and is designed for through hole mounting. The switch has a mechanical life of 200,000 cycles and an electrical life of 100,000 cycles. It operates within a temperature range of -30°C to 85°C and is compliant with RoHS regulations.
Package201
Current Rating1A
MountingThrough Hole
Quick Jump:
Technical Specifications
NKK Switches M2B25AA5G03-FA technical specifications.
General
| Actuator Type | Round, Button |
| Package/Case | 201 |
| Contact Plating | Gold |
| Current Rating | 1A |
| Electrical Life | 100000Cycles |
| Max Operating Temperature | 85°C |
| Mechanical Life | 200000Cycles |
| Min Operating Temperature | -30°C |
| Mount | Through Hole |
| Packaging | Bulk |
| RoHS Compliant | Yes |
| Series | M2 |
| Switch Function | On-Mom |
| Termination | PC Pin |
| Throw Configuration | DPDT |
| Voltage Rating (AC) | 28V |
| DC Rated Voltage | 28V |
Compliance
| RoHS | Compliant |
Datasheet
NKK Switches M2B25AA5G03-FA Datasheet
Download the complete datasheet for NKK Switches M2B25AA5G03-FA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

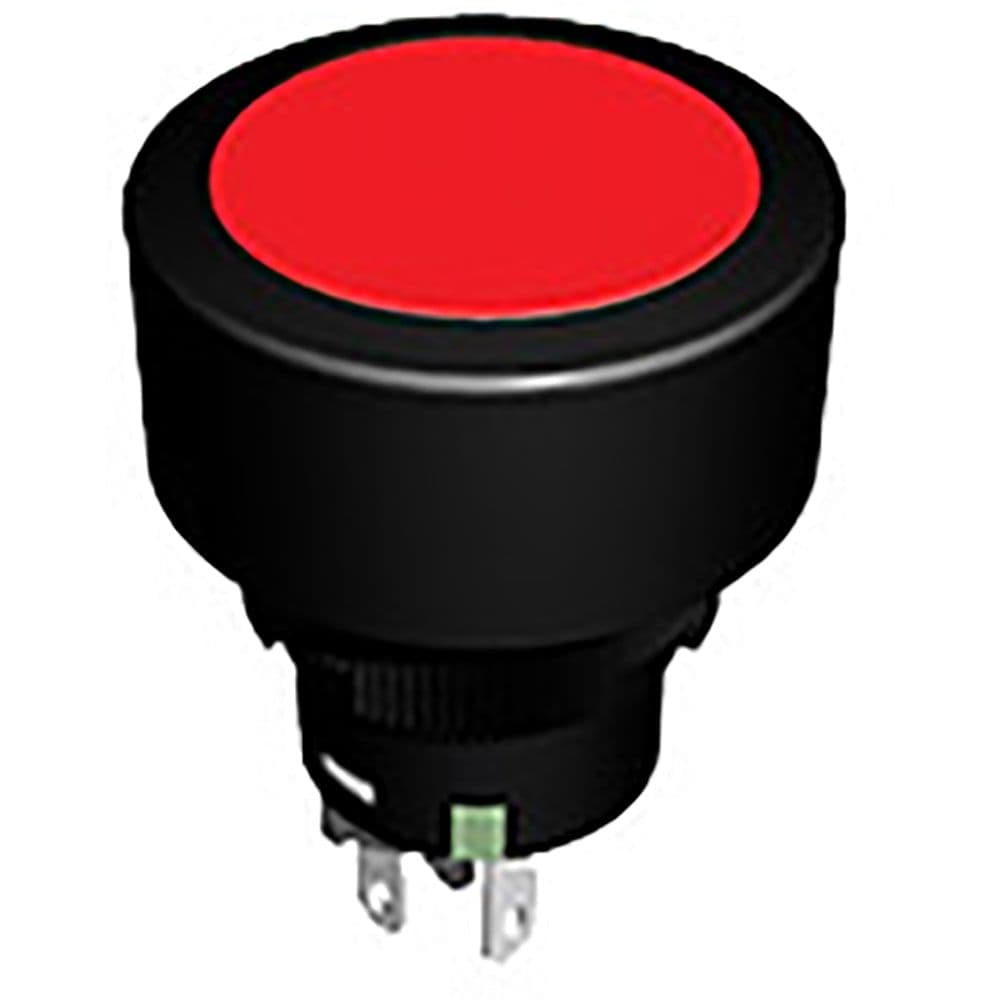

Product Images
