NKK Switches
MB2011SB3W01-EC

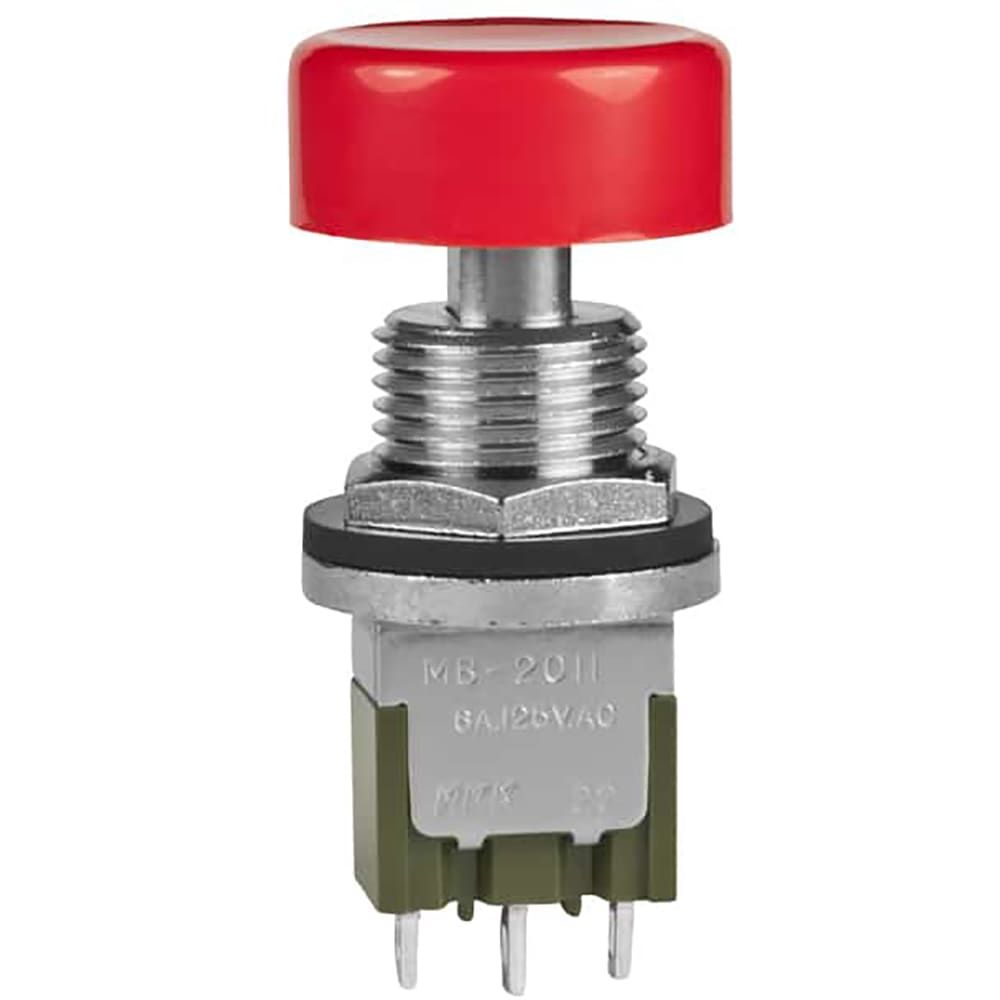

Switch Push Button ON (ON) SPDT Round Plunger 6A 250VAC 30VDC Momentary Contact Panel Mount Solder Lug
Current Rating6A
MountingPanel
Quick Jump:
Technical Specifications
NKK Switches MB2011SB3W01-EC technical specifications.
General
| Actuator Type | Round, Button |
| Contact Current Rating | 6A |
| Contact Plating | Silver |
| Current Rating | 6A |
| Electrical Life | 25000Cycles |
| Flammability Rating | UL94 V-0 |
| Max Operating Temperature | 85°C |
| Mechanical Life | 50000Cycles |
| Min Operating Temperature | -30°C |
| Mount | Panel |
| Package Quantity | 1 |
| Packaging | Bulk |
| Ratings | IP67, Waterproof, Dust Tight |
| RoHS Compliant | Yes |
| Series | MB2000 |
| Switch Function | On-Mom |
| Termination | Solder |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 125V |
| DC Rated Voltage | 30V |
Compliance
| RoHS | Compliant |
Datasheet
NKK Switches MB2011SB3W01-EC Datasheet
Download the complete datasheet for NKK Switches MB2011SB3W01-EC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
