This 28V SPDT on-momentary switch features a round actuator and a through-hole mount. It has a maximum operating temperature of 85°C and a minimum operating temperature of -30°C. The switch is designed to last for 50000 cycles and 100000 cycles mechanically. It is compliant with RoHS regulations and is available in a bulk packaging format.
MountingThrough Hole
Quick Jump:
Technical Specifications
NKK Switches MB2011SS2G13-BA technical specifications.
General
| Actuator Type | Round, Button |
| Electrical Life | 50000Cycles |
| Lead Free | Contains Lead |
| Max Operating Temperature | 85°C |
| Mechanical Life | 100000Cycles |
| Min Operating Temperature | -30°C |
| Mount | Through Hole |
| Orientation | Vertical |
| Package Quantity | 1 |
| Packaging | Bulk |
| RoHS Compliant | Yes |
| Series | MB2000 |
| Switch Function | On-Mom |
| Termination | PC Pin |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 28V |
| DC Rated Voltage | 28V |
Compliance
| RoHS | Compliant |
Datasheet
NKK Switches MB2011SS2G13-BA Datasheet
Download the complete datasheet for NKK Switches MB2011SS2G13-BA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

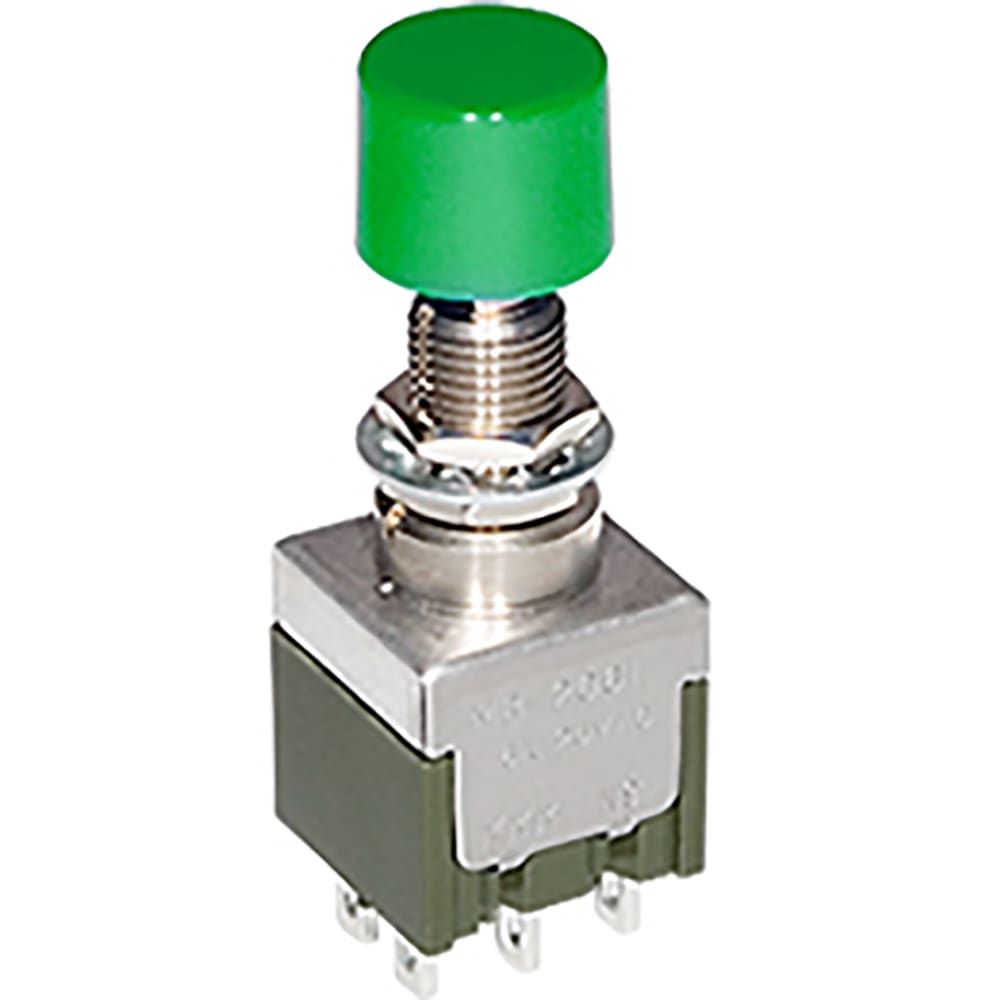

Product Images
