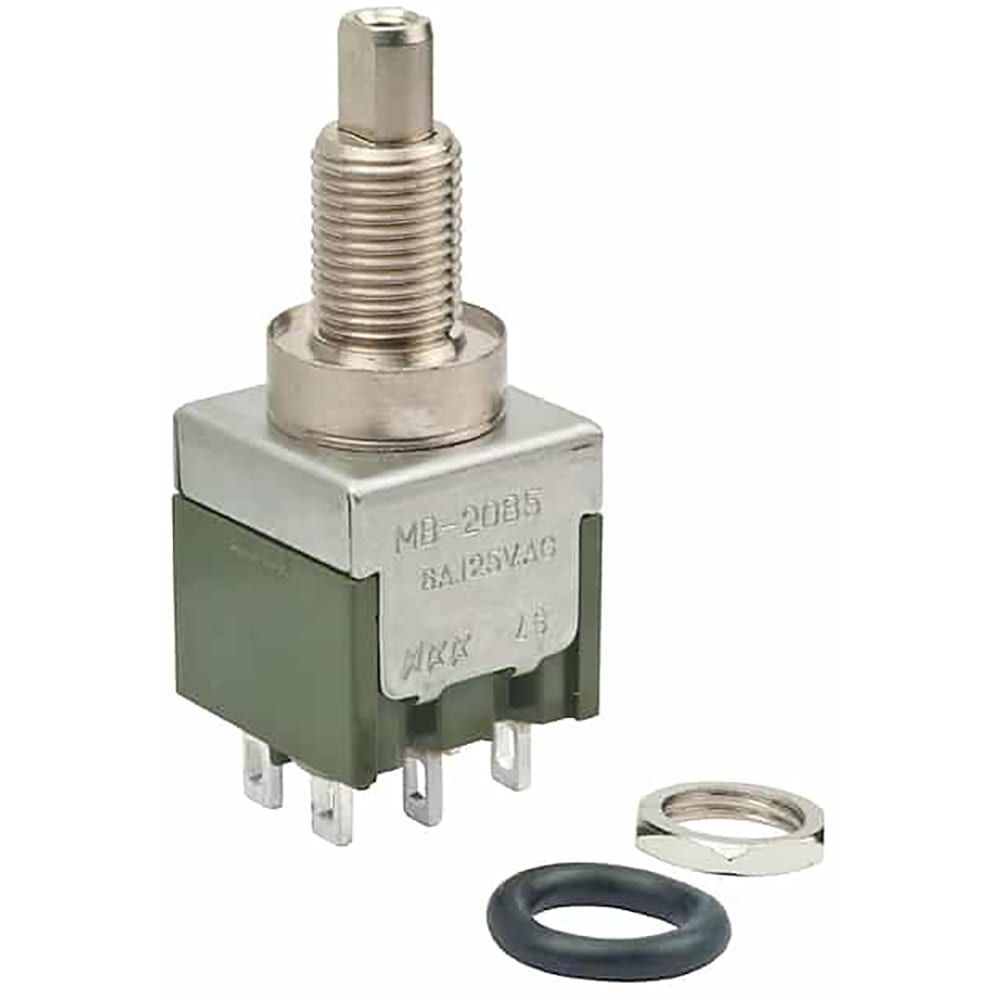

Illuminated pushbutton switch featuring DPDT alternate action with a round brass plunger. Offers a 6A maximum current rating at 250VAC and 30VDC, with a 3A continuous rating. Panel mount design with solder lug termination, providing 25,000 electrical cycles and 50,000 mechanical cycles. Constructed with silver contacts and plating, operating within a -30°C to 85°C temperature range. IP67 rated for waterproof and dust-tight applications.
Current Rating3A
MountingPanel
Quick Jump:
Technical Specifications
NKK Switches MB2085SD3W01 technical specifications.
General
| Actuator Material | Brass |
| Contact Material | Silver |
| Contact Plating | Silver |
| Current Rating | 3A |
| Depth | 12.7mm |
| Electrical Life | 25000Cycles |
| Lead Free | Lead Free |
| Length | 13mm |
| Max Current Rating | 6A |
| Max Operating Temperature | 85°C |
| Mechanical Life | 50000Cycles |
| Min Operating Temperature | -30°C |
| Max Voltage Rating (AC) | 250V |
| Max Voltage Rating (DC) | 30V |
| Mount | Panel |
| Package Quantity | 1 |
| Packaging | Bulk |
| Ratings | IP67, Waterproof, Dust Tight |
| Reach SVHC Compliant | No |
| Series | MB2000 |
| Switch Function | On-On |
| Termination | Solder |
| Throw Configuration | DPDT |
| Voltage Rating (AC) | 125V |
| DC Rated Voltage | 30V |
Compliance
| RoHS | Compliant |
Datasheet
NKK Switches MB2085SD3W01 Datasheet
Download the complete datasheet for NKK Switches MB2085SD3W01 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
