NKK Switches
MB2411E1W13-HA
Switch Push Button ON (ON) SPDT Round Plunger 3A 125VAC Momentary Contact Panel Mount/Bracket Mount PC Pins
Current Rating3A
MountingPanel
Quick Jump:
Technical Specifications
NKK Switches MB2411E1W13-HA technical specifications.
General
| Actuator Type | Round, Button |
| Contact Plating | Silver |
| Current Rating | 3A |
| Electrical Life | 25000Cycles |
| Flammability Rating | UL94 V-0 |
| Lead Free | Contains Lead |
| Life (Hours) | 200000Hour |
| Max Operating Temperature | 85°C |
| Mechanical Life | 200000Cycles |
| Min Operating Temperature | -30°C |
| Mount | Panel |
| Orientation | Vertical |
| Package Quantity | 1 |
| Packaging | Bulk |
| RoHS Compliant | Yes |
| Series | MB2400 |
| Switch Function | On-Mom |
| Termination | PC Pin |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 125V |
Compliance
| RoHS | Compliant |
Datasheet
NKK Switches MB2411E1W13-HA Datasheet
Download the complete datasheet for NKK Switches MB2411E1W13-HA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

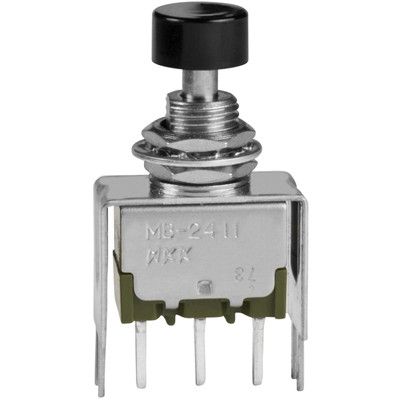

Product Images
