Illuminated pushbutton switch featuring a square brass button actuator and SPDT momentary contact. Rated for 0.1A at 28VAC/28VDC, with a 0.4VA power rating. Offers 100,000 electrical cycles and 200,000 mechanical cycles. Terminates via solder lug for panel mounting, with a UL94 V-0 flammability rating.
MountingPanel, Snap in
Quick Jump:
Technical Specifications
NKK Switches MB2411JG01-A-1A technical specifications.
General
| Actuator Material | Brass |
| Actuator Type | Square, Button |
| Contact Material | Copper |
| Contact Plating | Gold |
| Depth | 15.6mm |
| Electrical Life | 100000Cycles |
| Flammability Rating | UL94 V-0 |
| Lead Free | Lead Free |
| Length | 21.5mm |
| Max Current Rating | 100mA |
| Max Operating Temperature | 85°C |
| Mechanical Life | 200000Cycles |
| Min Operating Temperature | -30°C |
| Max Voltage Rating (AC) | 28V |
| Max Voltage Rating (DC) | 28V |
| Mount | Panel, Snap in |
| Orientation | Vertical |
| Package Quantity | 1 |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | MB2400 |
| Switch Function | On-Mom |
| Termination | Solder |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 28V |
| DC Rated Voltage | 28V |
Compliance
| RoHS | Compliant |
Datasheet
NKK Switches MB2411JG01-A-1A Datasheet
Download the complete datasheet for NKK Switches MB2411JG01-A-1A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

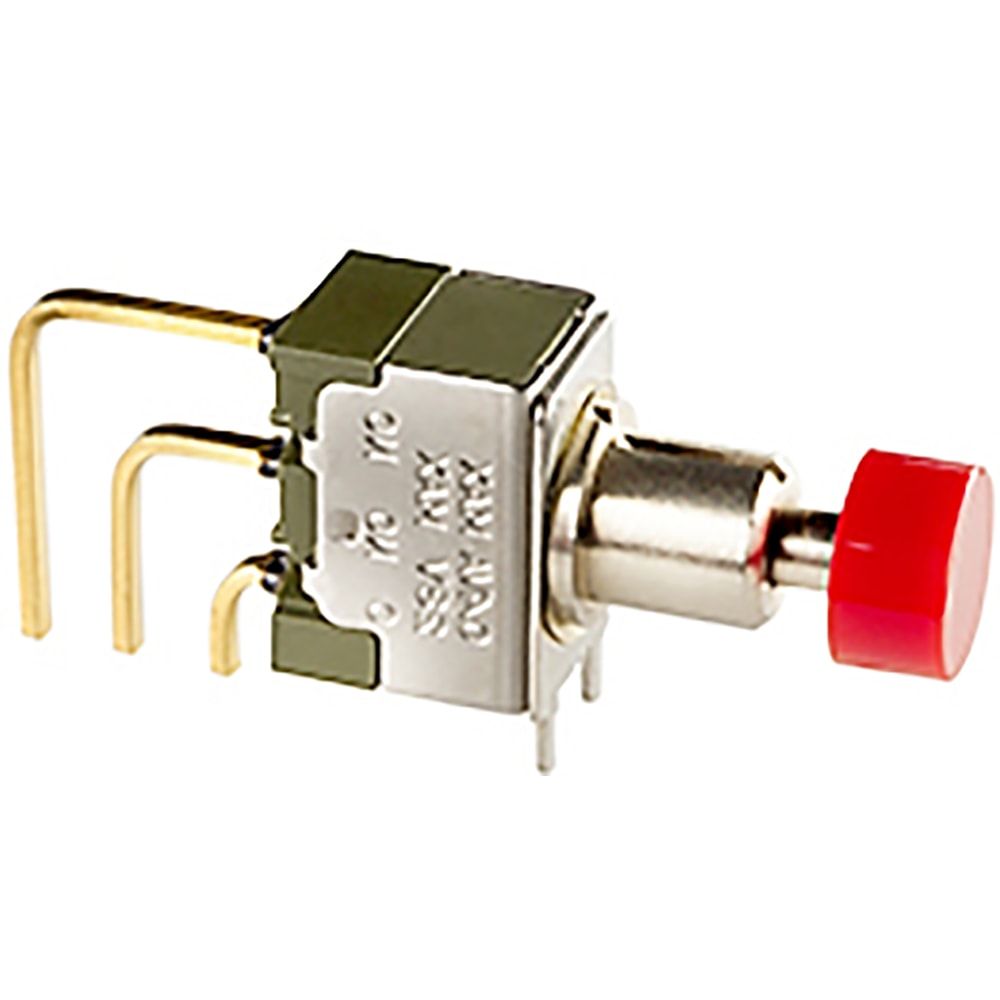

Product Images
