Name: MB2411JG01-H-1A NKK Switches
Brand: NKK Switches
SKU: MB2411JG01-H-1A

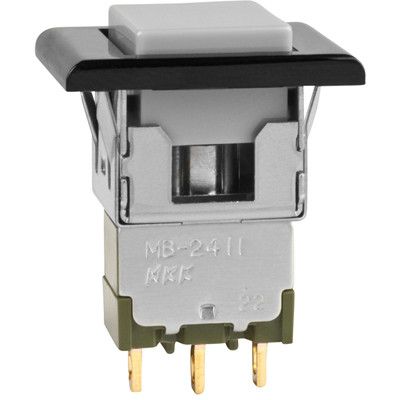

Illuminated SPDT Pushbutton Switch, 0.1A 28V, Momentary, Solder

Illuminated pushbutton switch featuring a momentary SPDT contact configuration. Rated for 0.1A at 28VAC/28VDC, with a 0.4VA contact rating. Offers a gold-plated copper contact material and a brass square button actuator. Designed for panel mounting with solder lug termination, boasting an electrical life of 100,000 cycles and a mechanical life of 200,000 cycles. Operating temperature range is -30°C to 85°C, with a UL94 V-0 flammability rating.

MountingPanel, Snap in

Quick Jump:

Technical Specifications

NKK Switches MB2411JG01-H-1A technical specifications.

General

Actuator Material	Brass
Actuator Type	Square, Button
Contact Material	Copper
Contact Plating	Gold
Depth	15.6mm
Electrical Life	100000Cycles
Flammability Rating	UL94 V-0
Illumination Type	Illuminated
Length	21.5mm
Max Current Rating	100mA
Max Operating Temperature	85°C
Max Voltage Rating (AC)	28V
Max Voltage Rating (DC)	28V
Mechanical Life	200000Cycles
Min Operating Temperature	-30°C
Mount	Panel, Snap in
Packaging	Bulk
RoHS Compliant	Yes
Series	MB2400
Switch Function	On-Mom
Termination	Solder
Throw Configuration	SPDT
Voltage Rating (AC)	28V
DC Rated Voltage	28V
