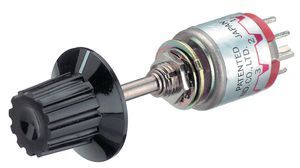

DP4T Rotary Switch with 4 positions and 2 poles per deck. Features a 1A current rating at 30VDC, with a maximum AC voltage rating of 125V. Includes a 13mm brass knob-type actuator with a black finish and solder terminals for through-hole mounting. Offers adjustable index stops with a 45° index angle and non-shorting silver/copper contacts.
Current Rating1A
MountingThrough Hole, Panel
Quick Jump:
Technical Specifications
NKK Switches MRX204-A technical specifications.
General
Actuator Length
13mm
Actuator Material
Brass
Actuator Type
KNOB TYPE
Color
Black
Contact Material
Silver, Copper
Contact Plating
Silver
Contact Style
Non-Shorting
Current Rating
1A
Depth
14mm
Illumination Type
Non-Illuminated, Illuminated
Index Angle
45°
Index Stops
Adjustable
Lead Free
Lead Free
Length
14mm
Max Current Rating
2A
Max Operating Temperature
70°C
Min Operating Temperature
-10°C
Max Voltage Rating (AC)
125V
Max Voltage Rating (DC)
30V
Mount
Through Hole, Panel
Number of Decks
1
Number of Poles
2
Number of Poles per Deck
2
Number of Positions
2
Package Quantity
1
Packaging
Bulk
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
MR
Termination
PC Pin
Throw Configuration
DPST, DP4T, DP
Voltage Rating (AC)
125V
DC Rated Voltage
30V
Compliance
RoHS
Compliant
Datasheet
NKK Switches MRX204-A Datasheet
Download the complete datasheet for NKK Switches MRX204-A to view detailed technical specifications.
