SPDT miniature slide switch with non-shorting contact timing and On-On circuit configuration. Features a 0.4VA AC/DC current rating at 28V AC/DC, a standard actuator with 5.1mm length, and gold-plated copper contacts. Through-hole mounting with PC pin termination and epoxy-sealed terminals for enhanced durability. Offers 50,000 electrical and 100,000 mechanical life cycles.
MountingThrough Hole
Quick Jump:
Technical Specifications
NKK Switches MS12ASG13 technical specifications.
General
| Actuator Length | 5.1mm |
| Actuator Material | PBT, Glass, Polybutylene |
| Actuator Type | Standard |
| Contact Material | Copper |
| Contact Plating | Gold |
| Depth | 7.1mm |
| Electrical Life | 50000Cycles |
| Lead Free | Lead Free |
| Length | 16.2mm |
| Max Current Rating | 100mA |
| Max Operating Temperature | 85°C |
| Mechanical Life | 100000Cycles |
| Min Operating Temperature | -30°C |
| Max Voltage Rating (AC) | 28V |
| Max Voltage Rating (DC) | 28V |
| Mount | Through Hole |
| Orientation | Vertical |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | MS |
| Switch Function | On-On |
| Switch Travel | 2.2mm |
| Termination | PC Pin |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 28V |
| DC Rated Voltage | 28V |
Compliance
| RoHS | Compliant |
Datasheet
NKK Switches MS12ASG13 Datasheet
Download the complete datasheet for NKK Switches MS12ASG13 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

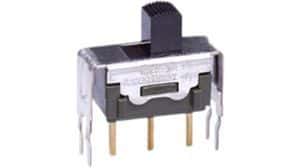

Product Images
