SPDT slide switch with 3 positions and On-Off-On function. Features a 6A contact current rating, silver contacts, and a 125V AC voltage rating. Designed for through-hole PCB mounting with straight PC pin termination. Operates within a -30°C to 85°C temperature range, offering 25,000 electrical and 100,000 mechanical life cycles.
Current Rating6A
MountingThrough Hole, PCB
Quick Jump:
Technical Specifications
NKK Switches MS13ANW03 technical specifications.
General
| Actuator Length | 5.1mm |
| Actuator Material | PBT, Glass, Polybutylene |
| Actuator Type | Standard |
| Body Material | Polyester, Glass fibre |
| Contact Current Rating | 6A |
| Contact Material | Silver |
| Contact Plating | Silver |
| Current Rating | 6A |
| Depth | 7.1mm |
| Electrical Life | 25000Cycles |
| Lead Free | Lead Free |
| Length | 12.7mm |
| Max Current Rating | 6A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -30°C |
| Max Voltage Rating (AC) | 250V |
| Mechanical Life | 100000Cycles |
| Mount | Through Hole, PCB |
| Number of Poles | 1 |
| Number of Positions | 3 |
| Orientation | Vertical |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | MS |
| Switch Function | On-Off-On |
| Switch Travel | 3.5mm |
| Termination | PC Pin |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 125V |
Compliance
| RoHS | Compliant |
Datasheet
NKK Switches MS13ANW03 Datasheet
Download the complete datasheet for NKK Switches MS13ANW03 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

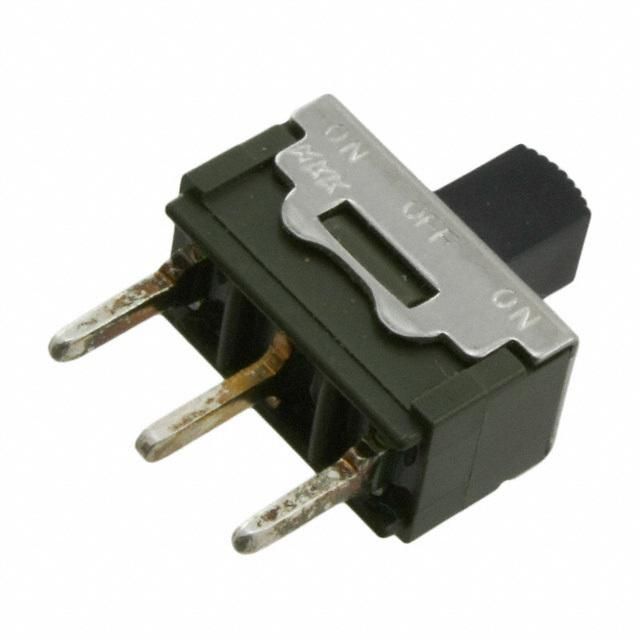

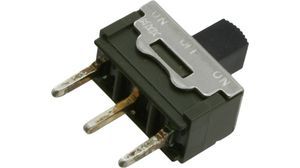

Product Images
