NKK Switches
ND3FC10P
Switch DIP N.O./N.C. SP10T 10 Flush Screwdriver 0.1A 5VDC Gull Wing 20000Cycles 2.54mm SMD Tray
MountingSurface Mount
Quick Jump:
Technical Specifications
NKK Switches ND3FC10P technical specifications.
General
| Actuator Type | Rotary |
| Body Material | Nylon, Glass, Polyamide |
| Contact Material | Copper |
| Contact Plating | Gold |
| Lead Free | Contains Lead |
| Lead/Base Style | Gull Wing |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -25°C |
| Mount | Surface Mount |
| Number of Positions | 10 |
| Number of Switches | 10 |
| Package Quantity | 1 |
| Packaging | Tray |
| Pitch | 0.1inch |
| RoHS Compliant | Yes |
| Series | ND3 |
| Termination | Gull Wing |
| DC Rated Voltage | 5V |
| Washable | Yes |
Compliance
| RoHS | Compliant |
Datasheet
NKK Switches ND3FC10P Datasheet
Download the complete datasheet for NKK Switches ND3FC10P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

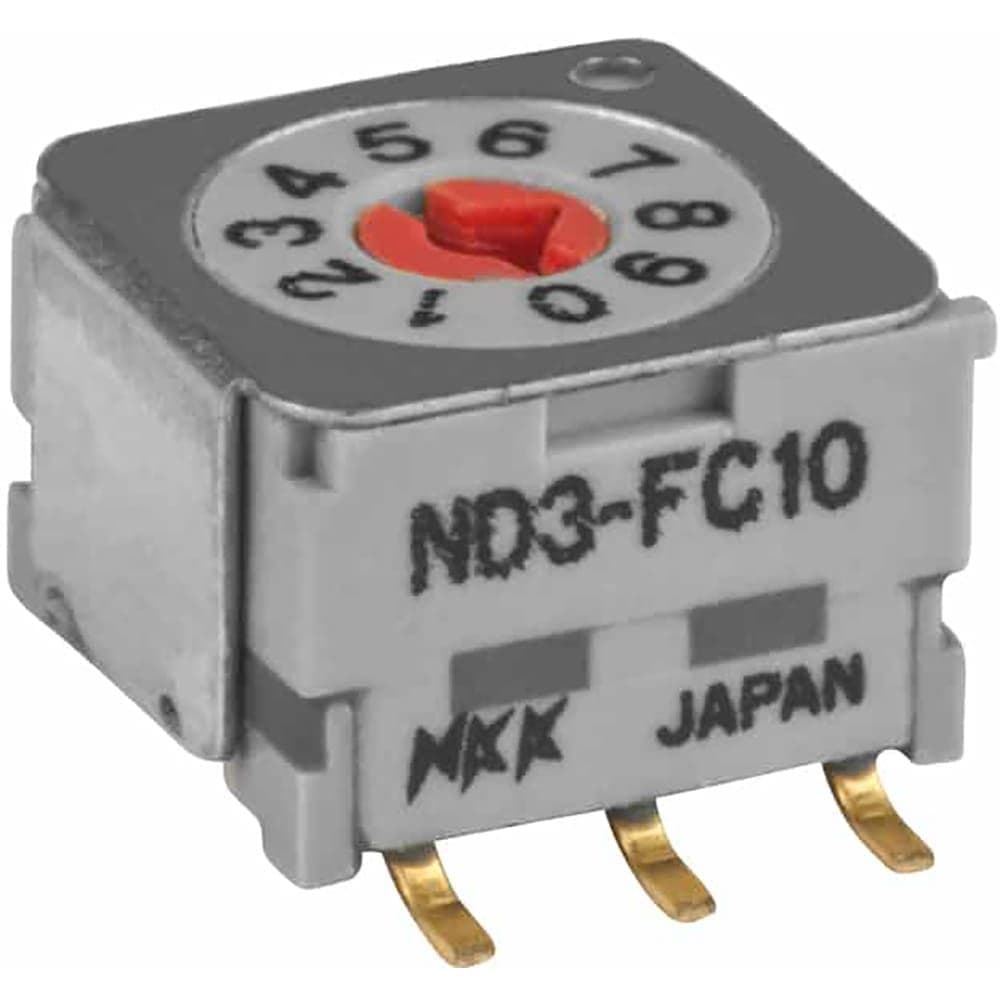

Product Images
