NKK Switches
SB4011NCH
Illuminated Pushbutton Switch SPST 3A 250VAC 30VDC Momentary Panel Mount Solder
Illuminated pushbutton switch featuring a momentary ON (OFF) function with a single-pole, single-throw (SPST) configuration. Rated for 3A at 250VAC and 30VDC, this panel-mount switch offers a silver contact material with nickel plating and solder lug terminations. It boasts a mechanical life of 30,000 cycles and an electrical life of 10,000 cycles, operating within a temperature range of -10°C to 70°C. The actuator is constructed from resin and phenolic materials.
Current Rating3A
MountingPanel
Quick Jump:
Technical Specifications
NKK Switches SB4011NCH technical specifications.
General
| Actuator Material | Resin, Phenolic |
| Contact Current Rating | 3A |
| Contact Material | Silver |
| Contact Plating | Nickel |
| Current Rating | 3A |
| Depth | 12mm |
| Electrical Life | 10000Cycles |
| Lead Free | Lead Free |
| Length | 12mm |
| Max Current Rating | 3A |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -10°C |
| Max Voltage Rating (AC) | 250V |
| Max Voltage Rating (DC) | 30V |
| Mechanical Life | 30000Cycles |
| Mount | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Orientation | Vertical |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | SB40 |
| Switch Function | On-Mom |
| Termination | Solder |
| Throw Configuration | SPST |
| Voltage Rating (AC) | 125V |
| DC Rated Voltage | 30V |
Compliance
| RoHS | Compliant |
Datasheet
NKK Switches SB4011NCH Datasheet
Download the complete datasheet for NKK Switches SB4011NCH to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

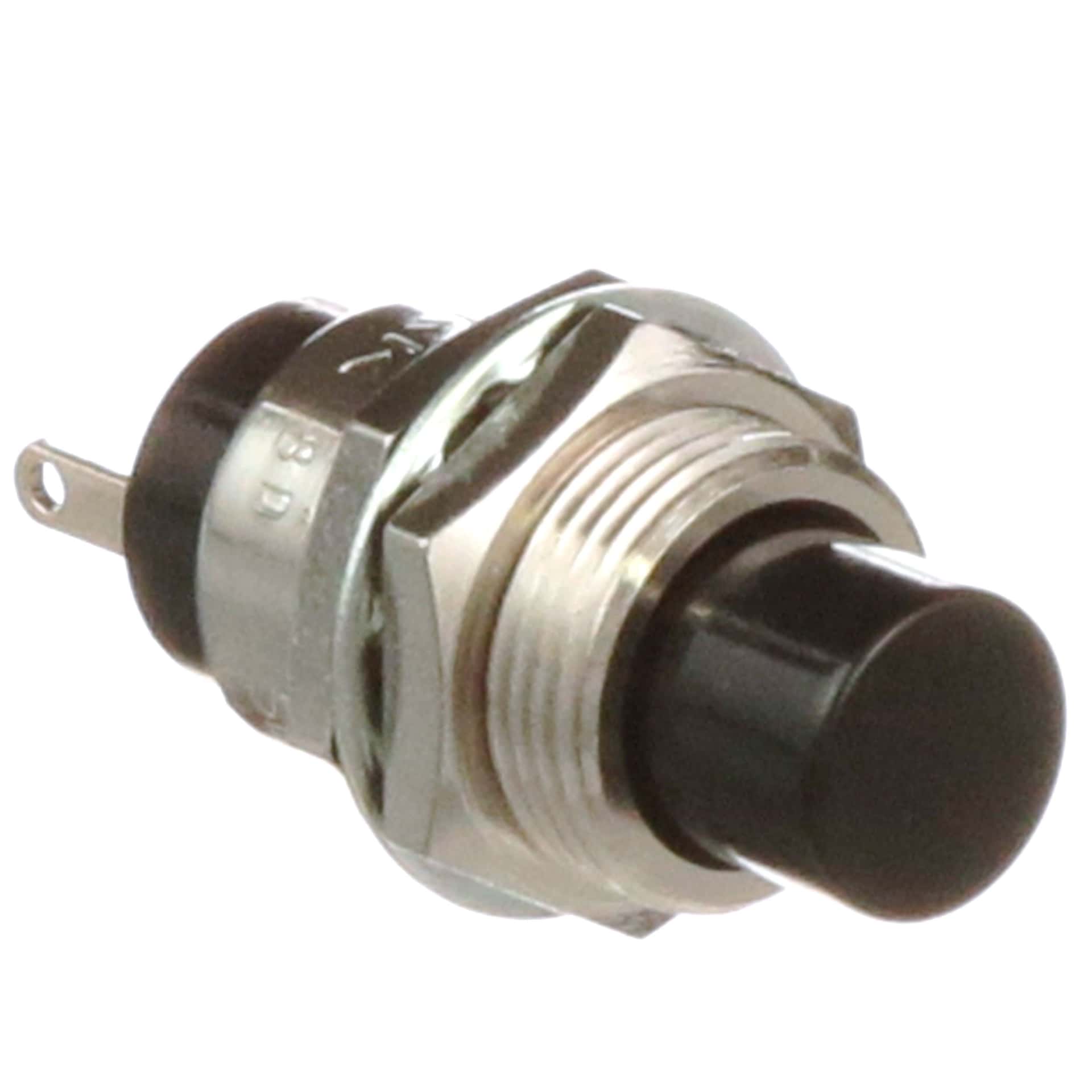

Product Images
