Illuminated & Non-Illuminated Pushbutton Switch, SPST momentary contact, featuring a round plunger actuator with a resin and phenolic construction. Rated for 0.1A at 250VAC and 30VDC, with a 0.4VA contact rating. Offers a 100mA maximum current rating and 250VAC/30VDC maximum voltage. Electrical life is 10,000 cycles, with a mechanical life of 30,000 cycles. Panel mount design with solder lug termination, operating temperature range of -10°C to 70°C, and UL94 V-0 flammability rating.
MountingPanel
Quick Jump:
Technical Specifications
NKK Switches SB4011NOMG technical specifications.
General
| Actuator Material | Resin, Phenolic |
| Contact Material | Copper |
| Contact Plating | Gold |
| Depth | 12mm |
| Electrical Life | 10000Cycles |
| Flammability Rating | UL94 V-0 |
| Lead Free | Contains Lead |
| Length | 12mm |
| Life (Hours) | 10000Hour |
| Max Current Rating | 100mA |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -10°C |
| Max Voltage Rating (AC) | 250V |
| Max Voltage Rating (DC) | 30V |
| Mechanical Life | 30000Cycles |
| Mount | Panel |
| Orientation | Vertical |
| Package Quantity | 1 |
| Packaging | Bulk |
| RoHS Compliant | Yes |
| Series | SB40 |
| Switch Function | Off-Mom |
| Termination | Solder |
| Throw Configuration | SPST |
| Voltage Rating (AC) | 28V |
| DC Rated Voltage | 28V |
Compliance
| RoHS | Compliant |
Datasheet
NKK Switches SB4011NOMG Datasheet
Download the complete datasheet for NKK Switches SB4011NOMG to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

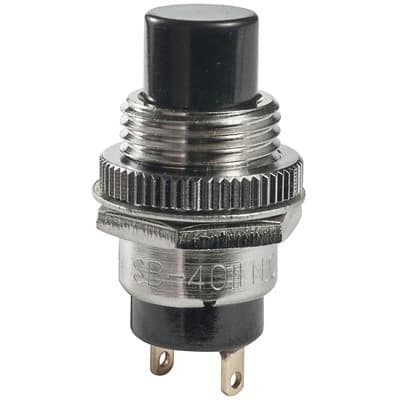

Product Images
