NKK SWITCHES

SK12AG30

Datasheet

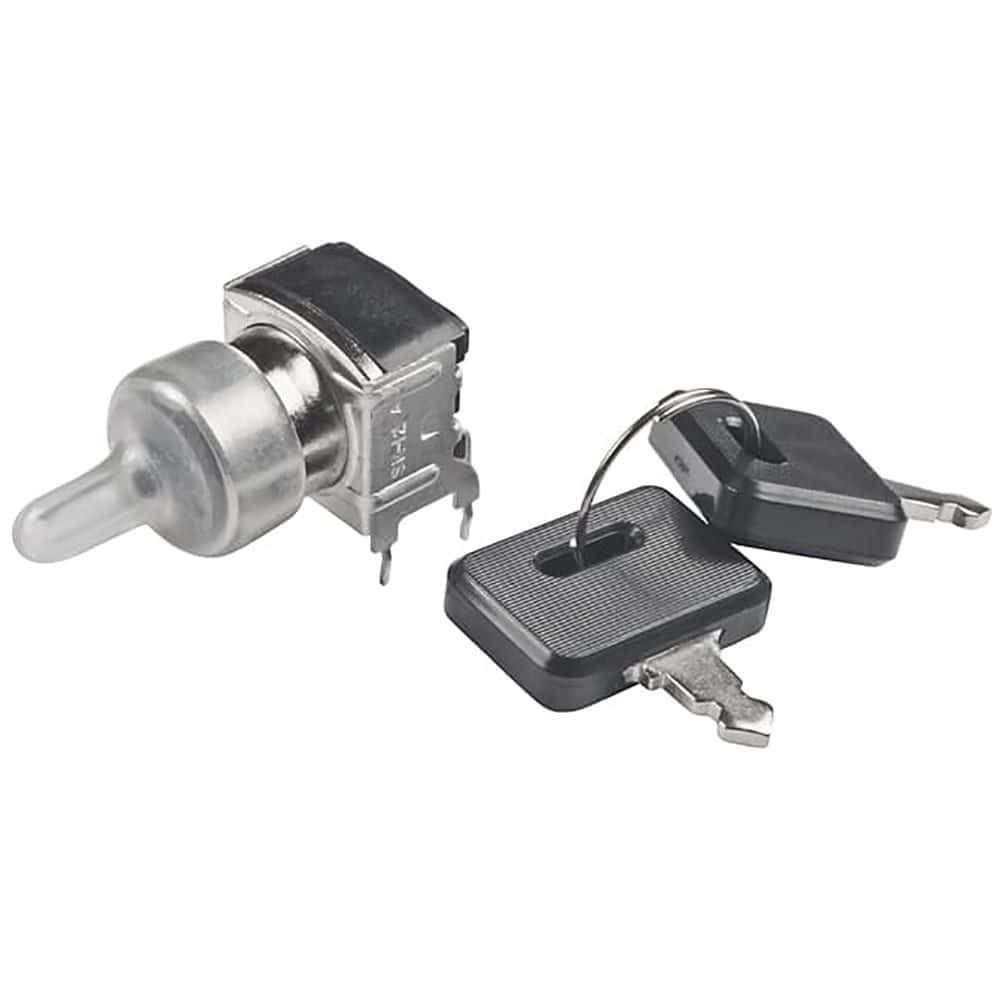

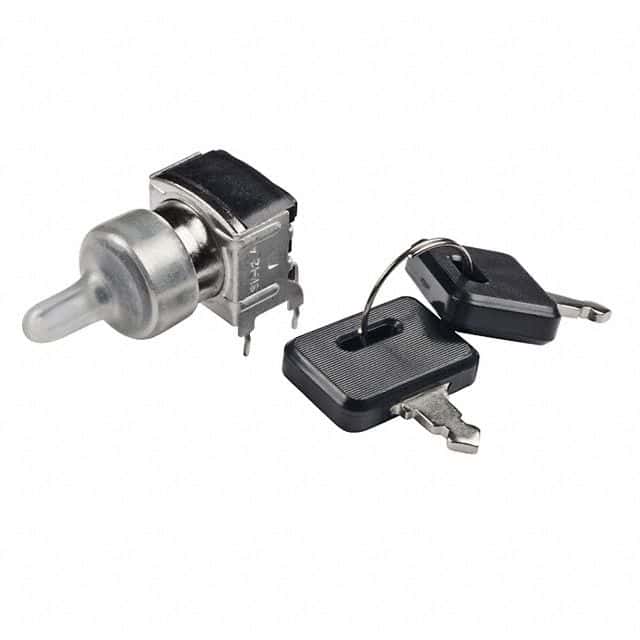

SPDT Keylock Switch, 2 Pos, On-On, 0.4VA, 28V, Gold Cu, PC Pin, RH Angle

NKK Switches

SK12AG30

Name: SK12AG30 NKK Switches
Brand: NKK Switches
SKU: SK12AG30

SPDT Keylock Switch, 2 Pos, On-On, 0.4VA, 28V, Gold Cu, PC Pin, RH Angle

SPDT maintained keylock switch with 2 positions and non-shorting (BBM) contact timing. Features a 0.4VA (AC/DC) current rating at 28V (AC/DC), beryllium copper contacts with gold plating, and a flat key actuator with all key removable positions. Designed for through-hole mounting with a right-angle orientation and PC pin termination. Offers 10,000 electrical cycles and 30,000 mechanical cycles, operating between -25°C and 70°C.

MountingThrough Hole

Quick Jump:

Technical Specifications

NKK Switches SK12AG30 technical specifications.

General

Contact Material	Copper
Contact Plating	Gold
Depth	25.45mm
Electrical Life	10000Cycles
Index Angle	90°
Lead Free	Lead Free
Length	15.74mm
Max Current Rating	100mA
Max Operating Temperature	70°C
Max Voltage Rating (AC)	28V
Max Voltage Rating (DC)	28V
Mechanical Life	30000Cycles
Min Operating Temperature	-25°C
Mount	Through Hole
Number of Positions	2
Orientation	Right Angle
Reach SVHC Compliant	No
RoHS Compliant	Yes
Series	SK
Switch Function	On-On
Termination	PC Pin
Throw Configuration	SPDT
Voltage Rating (AC)	28V
DC Rated Voltage	28V
Width	15.2mm
