NKK Switches
SK14EG30
Process Sealed Keylock; Poles: SP3T; no positions: 3; Circuits: On-On-On; contact timing: Non-Shorting (BBM); Current Rating: 0.4VA (AC/DC); Rating (AC): 28V; Rating (DC): 28V; Actuator Type: Flat Key; key removable positions: 2 only; angle throw: 45?; contact material: Beryllium Copper; contact finish: Gold; Mounting Type: Through Hole, Right Angle; Termination Style: PC Pin; Features: Process Sealed; Rating: 0.4
MountingThrough Hole
Quick Jump:
Technical Specifications
NKK Switches SK14EG30 technical specifications.
General
Contact Material
Copper
Contact Plating
Gold
Electrical Life
10000Cycles
Index Angle
45°
Max Operating Temperature
70°C
Mechanical Life
30000Cycles
Min Operating Temperature
-25°C
Mount
Through Hole
Number of Positions
3
RoHS Compliant
Yes
Series
SK
Switch Function
On-On-On
Termination
PC Pin
Throw Configuration
SP3T
Voltage Rating (AC)
28V
DC Rated Voltage
28V
Compliance
RoHS
Compliant
Datasheet
NKK Switches SK14EG30 Datasheet
Download the complete datasheet for NKK Switches SK14EG30 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

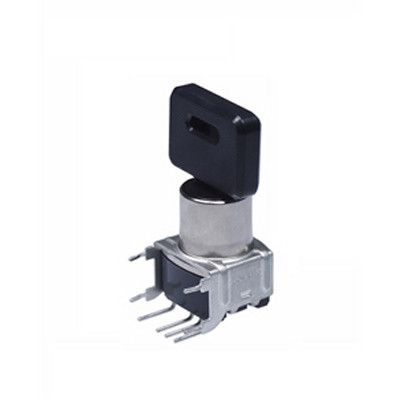

Product Images
