SPDT slide switch featuring a 2-position, On-On function with a latched actuator. This through-hole component offers a 100mA current rating at 30VDC and 28VAC, with a mechanical and electrical life of 10,000 cycles. Constructed with polyamide or polyacetal body and nylon actuator, it boasts silver-plated bronze or brass contacts and a UL94 V-0 flammability rating. Designed for PCB mounting with straight PC pins, this non-illuminated switch operates within a temperature range of -15°C to 60°C.
Current Rating100mA
MountingThrough Hole, PCB
Quick Jump:
Technical Specifications
NKK Switches SS12SDP2 technical specifications.
General
Actuator Length
2mm
Actuator Material
Nylon, Polyamide, Polyacetal
Actuator Type
Standard
Body Material
Polyamide, Polyacetal
Contact Current Rating
100mA
Contact Material
Bronze, Brass, Silver
Contact Plating
Silver
Current Rating
100mA
Depth
4mm
Electrical Life
10000Cycles
Flammability Rating
UL94 V-0
Height
6.5mm
Illumination Type
Non-Illuminated
Lead Free
Lead Free
Length
13mm
Max Current Rating
100mA
Max Operating Temperature
60°C
Max Voltage Rating (DC)
30V
Mechanical Life
10000Cycles
Min Operating Temperature
-15°C
Mount
Through Hole, PCB
Number of Poles
1
Number of Positions
2
Orientation
Straight
Packaging
Tray
RoHS Compliant
Yes
Series
SS
Switch Function
On-On
Switch Travel
2mm
Termination
PC Pins
Throw Configuration
SPDT
Voltage Rating (AC)
28V
DC Rated Voltage
30V
Compliance
RoHS
Compliant
Datasheet
NKK Switches SS12SDP2 Datasheet
Download the complete datasheet for NKK Switches SS12SDP2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

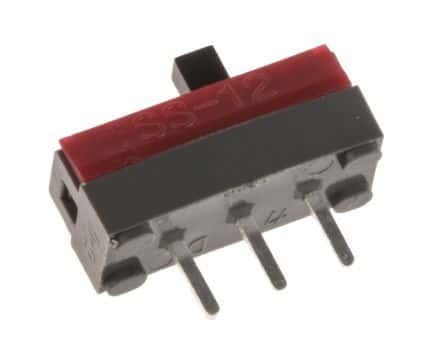

Product Images
