NKK SWITCHES

SS14MBP2

Datasheet

SP3T Slide Switch, On-On-On, 100mA, 30VDC, Through Hole, PC Pin

NKK Switches

SS14MBP2

Name: SS14MBP2 NKK Switches
Brand: NKK Switches
SKU: SS14MBP2

SP3T Slide Switch, On-On-On, 100mA, 30VDC, Through Hole, PC Pin

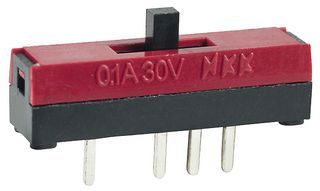

Ultra-miniature slide switch featuring SP3T, On-On-On circuitry with non-shorting contact timing. Rated for 100mA at 30V DC and 28V AC, this through-hole mounted component utilizes silver-plated phosphor bronze contacts. It offers a 2.00mm standard actuator length and a mechanical and electrical life of 10,000 cycles. Constructed with UL94 V-0 flammability rated nylon, it operates within a -15°C to 60°C temperature range.

Current Rating100mA

MountingThrough Hole

Quick Jump:

Technical Specifications

NKK Switches SS14MBP2 technical specifications.

General

Actuator Length	2mm
Actuator Material	Nylon, Polyamide
Actuator Type	Standard
Contact Current Rating	100mA
Contact Material	Bronze, Brass
Contact Plating	Silver
Current Rating	100mA
Depth	4mm
Electrical Life	10000Cycles
Flammability Rating	UL94 V-0
Illumination Type	Non-Illuminated
Lead Free	Lead Free
Length	15.8mm
Max Current Rating	100mA
Max Operating Temperature	60°C
Min Operating Temperature	-15°C
Max Voltage Rating (DC)	30V
Mechanical Life	10000Cycles
Mount	Through Hole
Orientation	Vertical
Package Quantity	1
Packaging	Tray
Reach SVHC Compliant	No
RoHS Compliant	Yes
Series	SS
Switch Function	On-On-On
Switch Travel	2mm
Termination	PC Pin
Throw Configuration	SP3T
Voltage Rating (AC)	28V
DC Rated Voltage	30V
