SP3T slide switch featuring non-shorting (BBM) contact timing and On-On-On circuits. Rated for 100mA at 30V DC, with silver-plated phosphor bronze contacts. This ultra-miniature, non-illuminated switch offers a 2.5mm standard actuator and PC pin termination for through-hole, right-angle mounting. It boasts a mechanical and electrical life of 10,000 cycles and meets UL94 V-0 flammability standards.
MountingThrough Hole
Quick Jump:
Technical Specifications
NKK Switches SS14MDH2 technical specifications.
General
| Actuator Length | 2.5mm |
| Actuator Material | Nylon, Polyamide |
| Actuator Type | Standard |
| Contact Current Rating | 100mA |
| Contact Material | Bronze, Brass, Silver |
| Contact Plating | Silver |
| Depth | 6.5mm |
| Electrical Life | 10000Cycles |
| Flammability Rating | UL94 V-0 |
| Illumination Type | Non-Illuminated |
| Lead Free | Lead Free |
| Length | 15.8mm |
| Max Current Rating | 100mA |
| Max Operating Temperature | 60°C |
| Max Voltage Rating (DC) | 30V |
| Mechanical Life | 10000Cycles |
| Min Operating Temperature | -15°C |
| Mount | Through Hole |
| Orientation | Horizontal |
| Packaging | Tray |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | SS |
| Switch Function | On-On-On |
| Switch Travel | 2mm |
| Termination | PC Pin |
| Throw Configuration | SP3T |
| Voltage Rating (AC) | 28V |
| DC Rated Voltage | 30V |
Compliance
| RoHS | Compliant |
Datasheet
NKK Switches SS14MDH2 Datasheet
Download the complete datasheet for NKK Switches SS14MDH2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

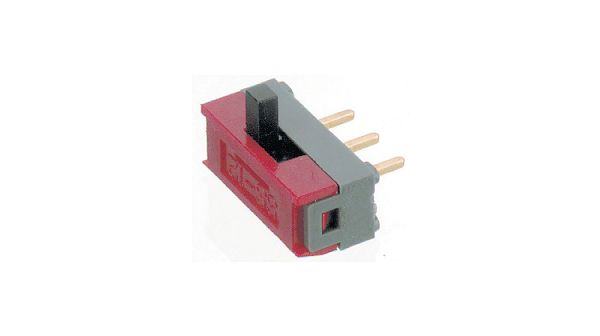

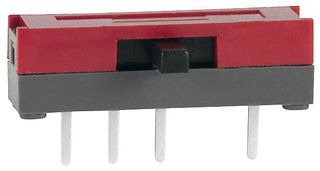

Product Images
