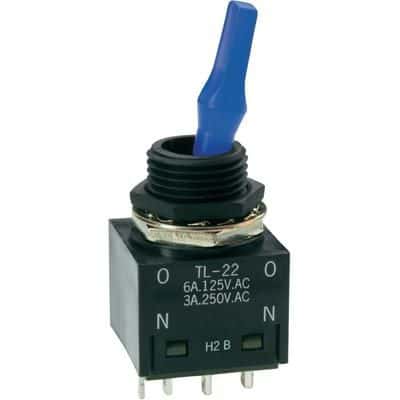

DPDT illuminated toggle switch with a vertical, panel-mount design and threaded body. Features a 6A at 250VAC / 3A at 125VDC current rating, with a 12VDC illumination voltage. The switch offers an ON-ON function with a 2-position, 2-pole configuration and a 17.5mm polycarbonate lever. Contact material is gold/silver with silver plating, providing an electrical life of 25,000 cycles. Rated IP65 for water and dust resistance, operating between -10°C and 55°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the NKK Switches TL22DNAW016F datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
NKK Switches TL22DNAW016F technical specifications.
| Actuator Length | 17.5mm |
| Actuator Material | PC, Polycarbonate |
| Actuator Type | Lever |
| Package/Case | 125 |
| Contact Current Rating | 3A |
| Contact Material | Gold, Silver |
| Contact Plating | Silver |
| Current Rating | 6A |
| Electrical Life | 25000Cycles |
| Illumination Color | Green |
| Illumination Type | Illuminated, LED |
| Lead Free | Contains Lead |
| Max Operating Temperature | 55°C |
| Min Operating Temperature | -10°C |
| Mount | Panel |
| Number of Poles | 2 |
| Number of Positions | 2 |
| Orientation | Vertical |
| Package Quantity | 50 |
| Packaging | Bulk |
| Ratings | IP65, Water Resistant, Dust Tight |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | TL |
| Switch Function | On-On |
| Termination | Solder |
| Throw Configuration | DPDT |
| Voltage Rating (AC) | 125V |
| DC Rated Voltage | 12V |
| RoHS | Compliant |
