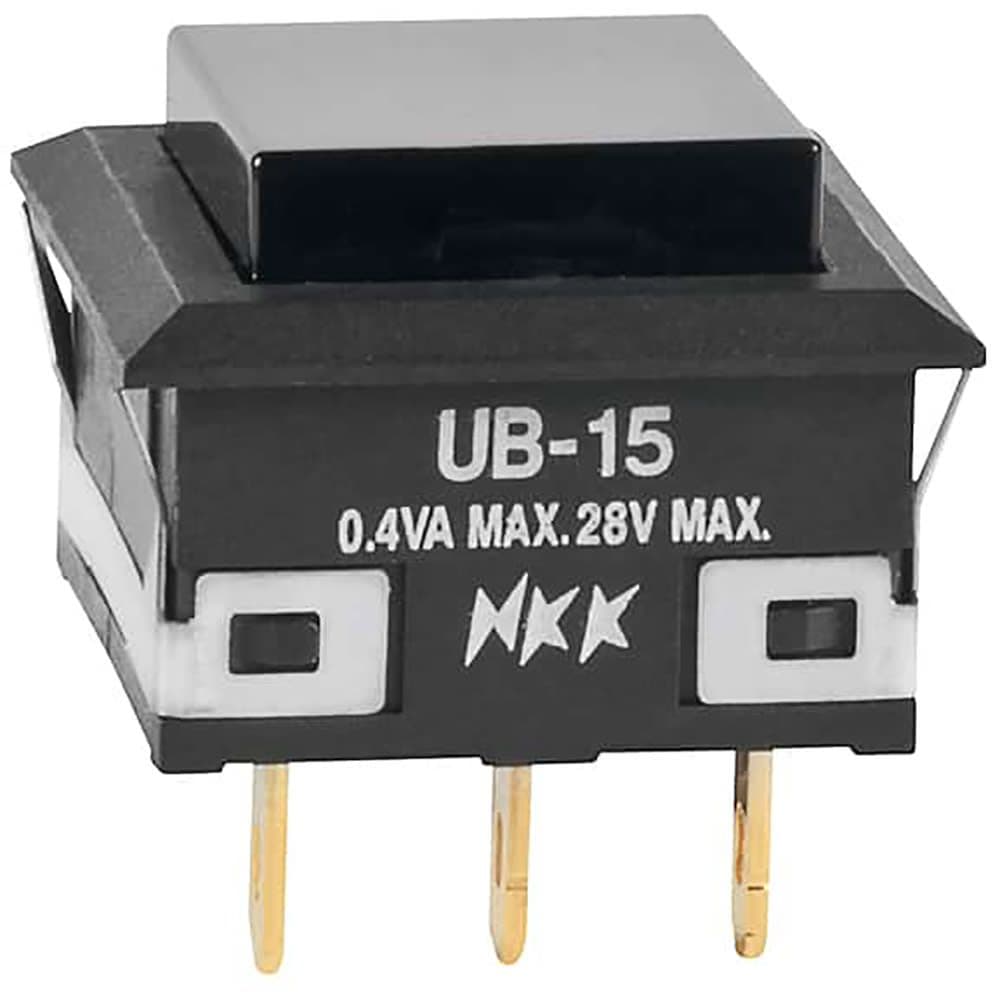

SPDT illuminated pushbutton switch featuring a square button actuator. Offers a momentary ON (ON) function with gold-plated copper contacts. Rated for 0.1A at 28VAC/28VDC, with a power rating of 0.4VA. Designed for panel mounting with solder lug terminations and a snap-in mechanism. Boasts an electrical life of 200,000 cycles and a mechanical life of 1,000,000 cycles. Operates within a temperature range of -20°C to 70°C and meets UL94 V-0 flammability standards.
MountingPanel, Snap in
Quick Jump:
Technical Specifications
NKK Switches UB15KKG01N-A technical specifications.
General
Actuator Type
Square, Button
Contact Material
Copper
Contact Plating
Gold
Depth
17.8mm
Electrical Life
200000Cycles
Flammability Rating
UL94 V-0
Lead Free
Lead Free
Length
17.8mm
Max Current Rating
100mA
Max Operating Temperature
70°C
Mechanical Life
1000000Cycles
Min Operating Temperature
-20°C
Max Voltage Rating (AC)
28V
Max Voltage Rating (DC)
28V
Mount
Panel, Snap in
Orientation
Vertical
Packaging
Tray
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
UB
Switch Function
On-Mom
Termination
Solder
Throw Configuration
SPDT, DPDT
Voltage Rating (AC)
28V
DC Rated Voltage
28V
Compliance
RoHS
Compliant
Datasheet
NKK Switches UB15KKG01N-A Datasheet
Download the complete datasheet for NKK Switches UB15KKG01N-A to view detailed technical specifications.
