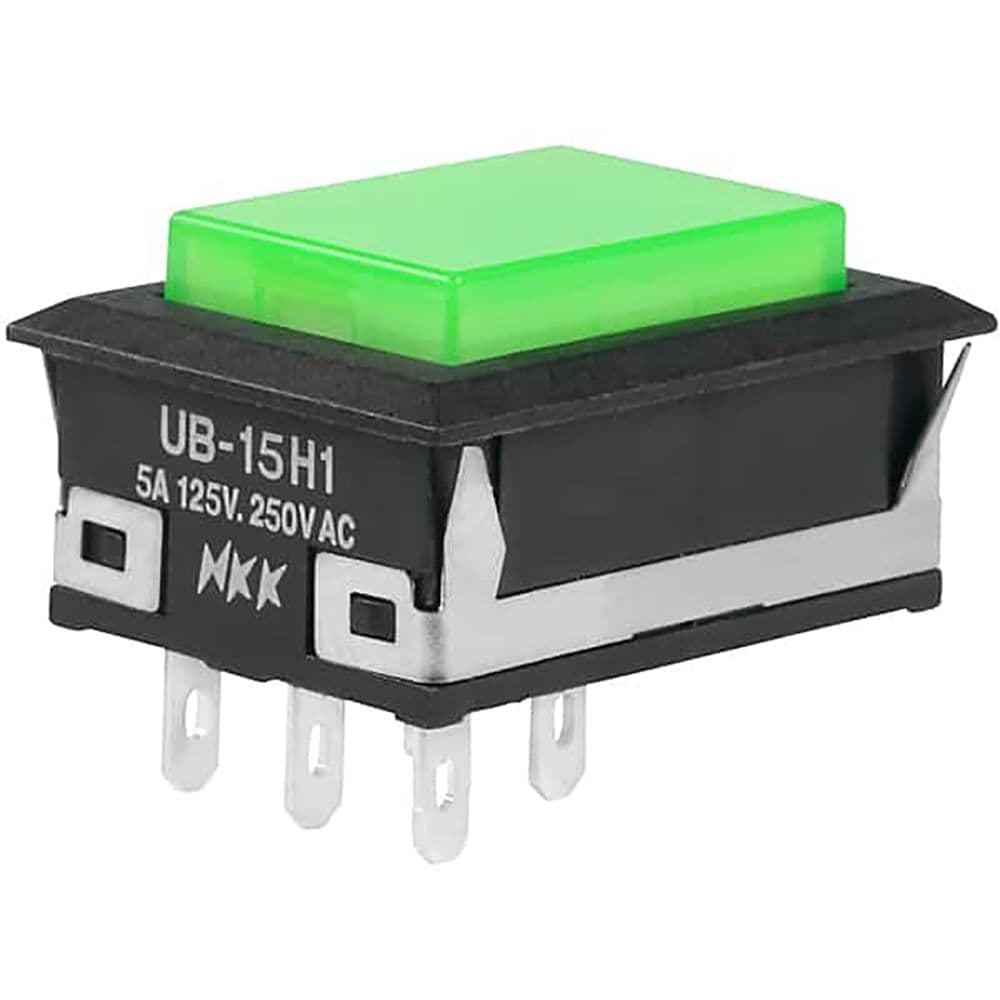

Illuminated pushbutton switch featuring SPDT momentary contact, a rectangular green LED illuminated button, and solder lug termination. Rated for 5A at 250VAC and 30VDC, with a voltage rating of 125VAC. Offers 10,000 electrical cycles and 1,000,000 mechanical cycles, operating within a -25°C to 50°C temperature range. Panel mountable with a snap-in design, constructed with silver contacts and plating, and UL94 V-0 flammability rating.
Package125
Current Rating5A
MountingPanel, Snap in
Quick Jump:
Technical Specifications
NKK Switches UB15NKW015F-FF technical specifications.
General
| Package/Case | 125 |
| Contact Material | Silver |
| Contact Plating | Silver |
| Current Rating | 5A |
| Depth | 24mm |
| Electrical Life | 10000Cycles |
| Flammability Rating | UL94 V-0 |
| Illumination Color | Green |
| Illumination Type | LED |
| Length | 17.8mm |
| Max Current Rating | 5A |
| Max Operating Temperature | 50°C |
| Mechanical Life | 1000000Cycles |
| Min Operating Temperature | -25°C |
| Max Voltage Rating (AC) | 250V |
| Max Voltage Rating (DC) | 30V |
| Mount | Panel, Snap in |
| Package Quantity | 1 |
| Packaging | Bulk |
| RoHS Compliant | Yes |
| Series | UB |
| Switch Function | On-Mom |
| Termination | Solder |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 125V |
| DC Rated Voltage | 30V |
Compliance
| RoHS | Compliant |
Datasheet
NKK Switches UB15NKW015F-FF Datasheet
Download the complete datasheet for NKK Switches UB15NKW015F-FF to view detailed technical specifications.
