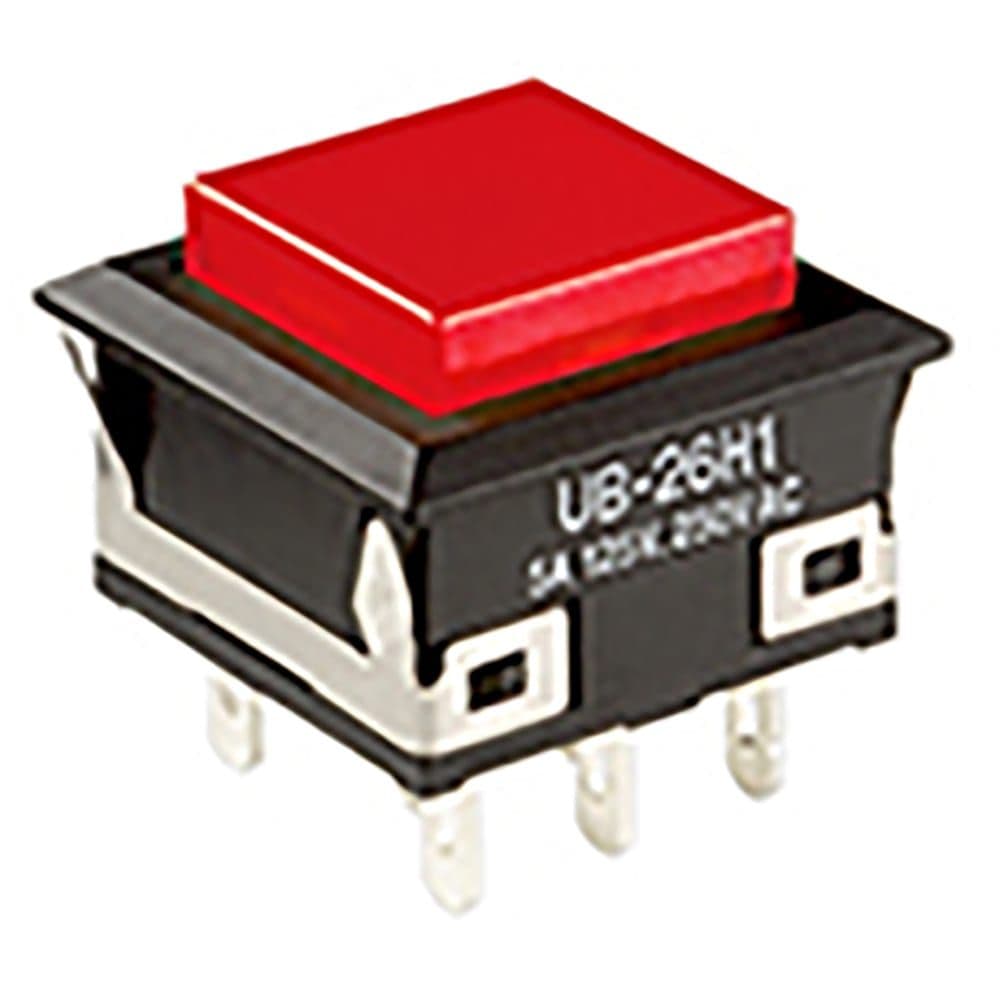

Illuminated & Non-Illuminated Pushbutton Switch featuring a momentary SPDT (Single Pole Double Throw) contact configuration. Rated for 0.1A at 28VAC/28VDC, with a maximum power rating of 0.4VA. This through-hole mounted component boasts a square button actuator and gold-plated copper contacts, offering an electrical life of 200,000 cycles and a mechanical life of 1,000,000 cycles. Operating within a temperature range of -20°C to 70°C, it is lead-free and RoHS compliant.
MountingThrough Hole
Quick Jump:
Technical Specifications
NKK Switches UB15SKG03N-B technical specifications.
General
| Actuator Type | Square, Button |
| Contact Material | Copper |
| Contact Plating | Gold |
| Depth | 15.24mm |
| Electrical Life | 200000Cycles |
| Lead Free | Lead Free |
| Length | 15.24mm |
| Max Current Rating | 100mA |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -20°C |
| Max Voltage Rating (AC) | 28V |
| Max Voltage Rating (DC) | 28V |
| Mechanical Life | 1000000Cycles |
| Mount | Through Hole |
| Orientation | Vertical |
| Package Quantity | 1 |
| Packaging | Bulk |
| RoHS Compliant | Yes |
| Series | UB |
| Switch Function | On-Mom |
| Termination | PC Pin |
| Throw Configuration | DPDT, SPDT |
| Voltage Rating (AC) | 28V |
| DC Rated Voltage | 28V |
Compliance
| RoHS | Compliant |
Datasheet
NKK Switches UB15SKG03N-B Datasheet
Download the complete datasheet for NKK Switches UB15SKG03N-B to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
