Illuminated pushbutton switch featuring a square, red LED illuminated button actuator made of polycarbonate. This SPDT momentary contact switch offers a 5A current rating at 250VAC and 30VDC, with a silver contact material and plating. Designed for panel mounting with snap-in capability, it utilizes solder lug terminations and boasts a mechanical life of 1,000,000 cycles and an electrical life of 10,000 cycles. Operating within a temperature range of -25°C to 50°C, the component has a flammability rating of UL94 V-0.
Package125
Current Rating5A
MountingPanel, Snap in
Quick Jump:
Technical Specifications
NKK Switches UB215KKW015C-1JC technical specifications.
General
Actuator Material
Polycarbonate
Actuator Type
Square, Button
Package/Case
125
Contact Current Rating
5A
Contact Material
Silver
Contact Plating
Silver
Current Rating
5A
Depth
19mm
Electrical Life
10000Cycles
Flammability Rating
UL94 V-0
Illumination Color
Red
Illumination Type
LED
Lead Free
Contains Lead
Length
19mm
Max Current Rating
5A
Max Operating Temperature
50°C
Min Operating Temperature
-25°C
Max Voltage Rating (AC)
250V
Max Voltage Rating (DC)
30V
Mechanical Life
1000000Cycles
Mount
Panel, Snap in
Orientation
Vertical
Package Quantity
1
Packaging
Bulk
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
UB2
Switch Function
On-Mom
Termination
Solder
Throw Configuration
SPDT
Voltage Rating (AC)
125V
DC Rated Voltage
30V
Width
15mm
Compliance
RoHS
Compliant
Datasheet
NKK Switches UB215KKW015C-1JC Datasheet
Download the complete datasheet for NKK Switches UB215KKW015C-1JC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

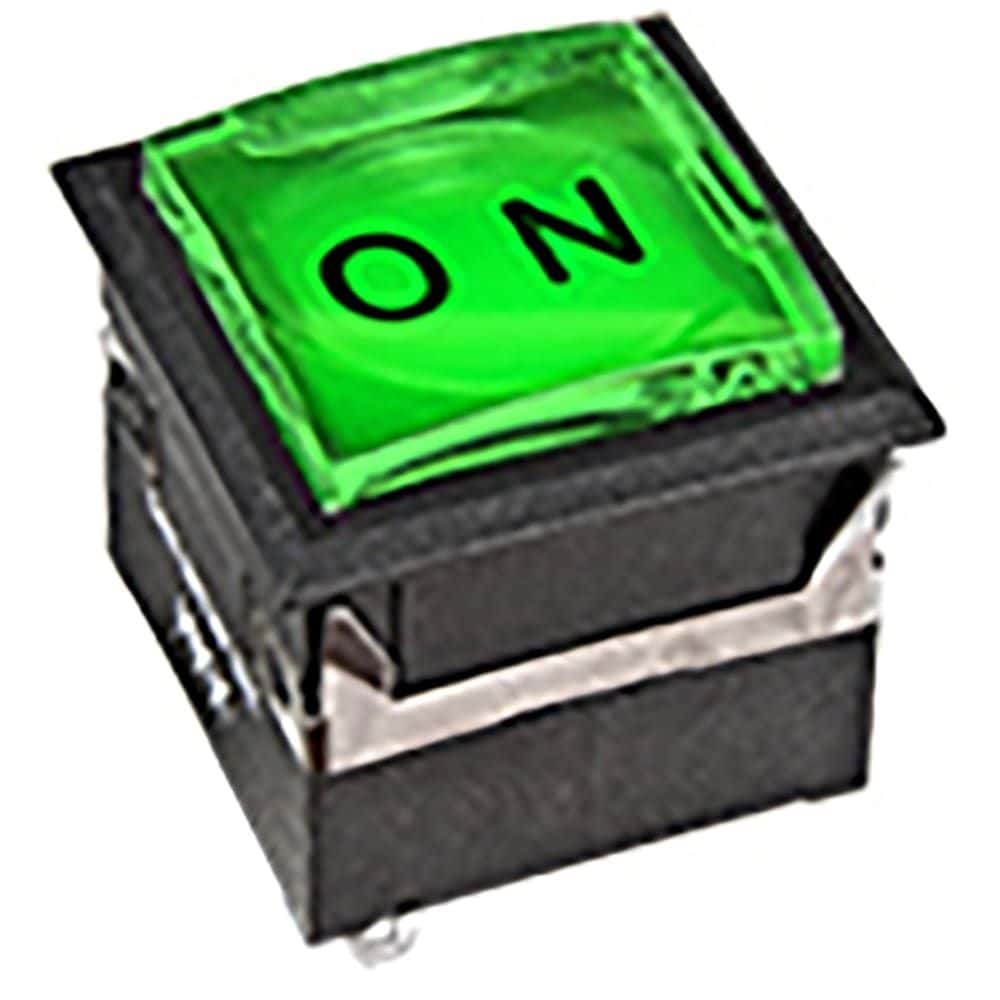

Product Images
