Illuminated pushbutton switch featuring a DPDT momentary contact configuration. This vertical mount, through-hole component offers a green LED illumination and a polycarbonate square button actuator. Rated for 0.1A at 28VAC/28VDC, it boasts a 200,000 cycle electrical life and 1,000,000 cycle mechanical life. Gold-plated copper contacts ensure reliable performance, with a UL94 V-0 flammability rating and lead-free, RoHS compliant construction.
MountingThrough Hole
Quick Jump:
Technical Specifications
NKK Switches UB225SKG035F-1JB technical specifications.
General
Actuator Material
Polycarbonate
Actuator Type
Square, Button
Contact Material
Copper
Contact Plating
Gold
Depth
15.24mm
Electrical Life
200000Cycles
Flammability Rating
UL94 V-0
Illumination Color
Green
Illumination Type
Illuminated, LED
Lead Free
Lead Free
Length
15mm
Max Current Rating
100mA
Max Operating Temperature
50°C
Min Operating Temperature
-25°C
Max Voltage Rating (AC)
28V
Max Voltage Rating (DC)
28V
Mechanical Life
1000000Cycles
Mount
Through Hole
Orientation
Vertical
Package Quantity
1
Packaging
Bulk
RoHS Compliant
Yes
Series
UB2
Switch Function
On-Mom
Termination
PC Pin
Throw Configuration
DPDT
Voltage Rating (AC)
28V
DC Rated Voltage
28V
Width
15mm
Compliance
RoHS
Compliant
Datasheet
NKK Switches UB225SKG035F-1JB Datasheet
Download the complete datasheet for NKK Switches UB225SKG035F-1JB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

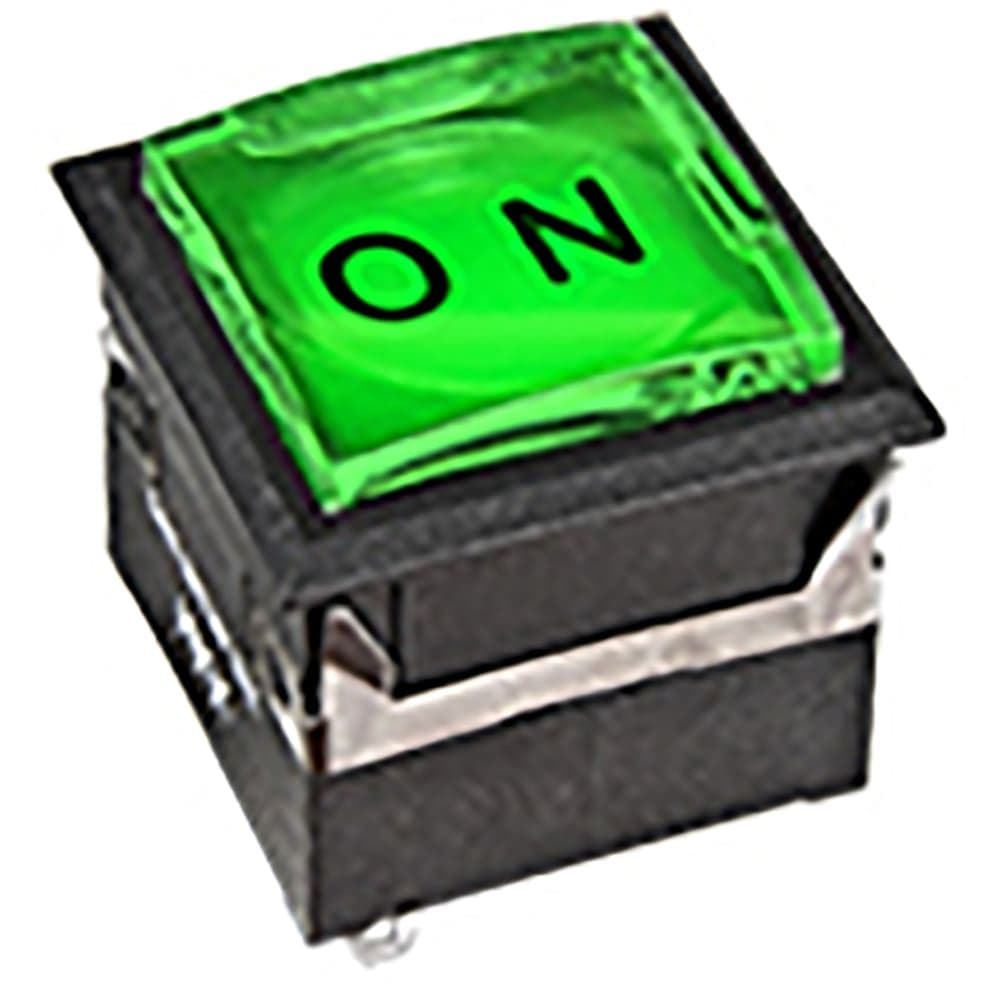

Product Images
