Illuminated pushbutton switch featuring a DPDT alternate contact configuration with a 5A at 250VAC / 30VDC rating. This panel-mount switch offers a green LED illumination and a polycarbonate square button actuator. Termination is via solder lugs, with a mechanical life of 200,000 cycles and an electrical life of 10,000 cycles. The component has a flammability rating of UL94 V-0 and operates within a temperature range of -25°C to 50°C.
Package125
Current Rating5A
MountingPanel, Snap in
Quick Jump:
Technical Specifications
NKK Switches UB226KKW015F-1JF technical specifications.
General
Actuator Material
Polycarbonate
Actuator Type
Square, Button
Package/Case
125
Contact Current Rating
5A
Contact Material
Silver
Contact Plating
Silver
Current Rating
5A
Depth
19mm
Electrical Life
10000Cycles
Flammability Rating
UL94 V-0
Illumination Color
Green
Illumination Type
Illuminated, LED
Lead Free
Contains Lead
Length
19mm
Max Current Rating
5A
Max Operating Temperature
50°C
Min Operating Temperature
-25°C
Max Voltage Rating (AC)
250V
Max Voltage Rating (DC)
30V
Mechanical Life
200000Cycles
Mount
Panel, Snap in
Orientation
Vertical
Package Quantity
100
Packaging
Bulk
RoHS Compliant
Yes
Series
UB2
Switch Function
On-On
Termination
Solder
Throw Configuration
DPDT
Voltage Rating (AC)
125V
DC Rated Voltage
30V
Width
15mm
Compliance
RoHS
Compliant
Datasheet
NKK Switches UB226KKW015F-1JF Datasheet
Download the complete datasheet for NKK Switches UB226KKW015F-1JF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

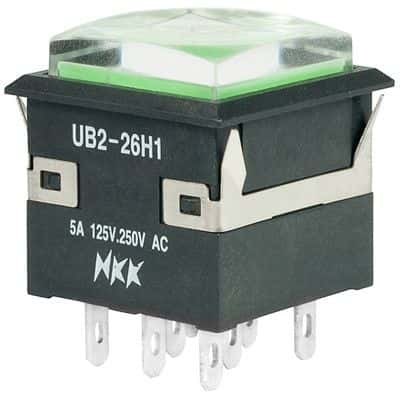

Product Images
