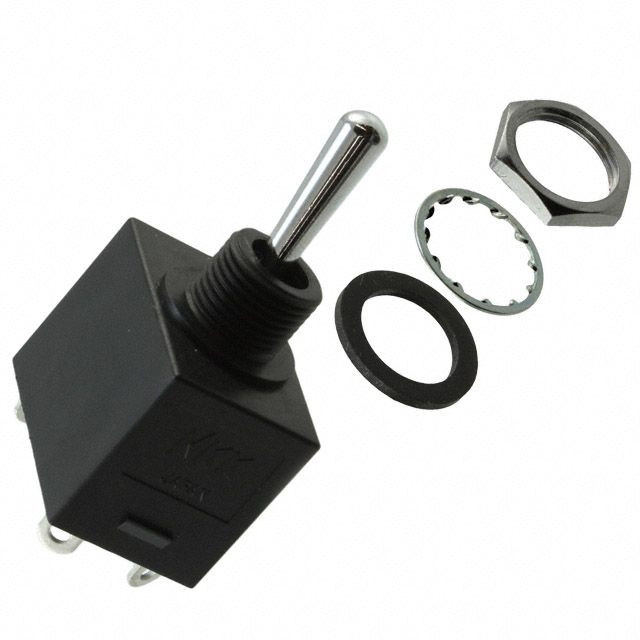

DPDT toggle switch featuring a standard round, chrome-plated brass lever with a 17.5mm actuator length. Rated for 10A at 250VAC and 30VDC, this non-illuminated, panel-mount switch offers three positions with an ON-OFF-ON function and solder lug terminations. It boasts an electrical life of 15,000 cycles and is IP67, waterproof, and dust-tight rated, operating between -30°C and 70°C. Approvals include UL and CSA, with RoHS compliance.
Current Rating10A
MountingPanel
Quick Jump:
Technical Specifications
NKK Switches WT23S technical specifications.
General
Actuator Length
17.5mm
Actuator Material
Brass, Chrome
Actuator Type
Standard Round
Approvals
UL, CSA
Contact Material
Silver
Contact Plating
Silver
Current Rating
10A
Depth
19.4mm
Electrical Life
15000Cycles
Illumination Type
Non-Illuminated, Illuminated
Lead Free
Lead Free
Length
28.8mm
Max Current Rating
10A
Max Operating Temperature
70°C
Min Operating Temperature
-30°C
Max Voltage Rating (AC)
250V
Max Voltage Rating (DC)
30V
Mount
Panel
Number of Poles
2
Number of Positions
3
Orientation
Vertical
Package Quantity
1
Packaging
Bulk
Ratings
IP67, Waterproof, Dust Tight
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
WT
Switch Function
On-Off-On
Termination
Solder
Throw Configuration
DPDT
Voltage Rating (AC)
125V
DC Rated Voltage
30V
Width
19.4mm
Compliance
RoHS
Compliant
Datasheet
NKK Switches WT23S Datasheet
Download the complete datasheet for NKK Switches WT23S to view detailed technical specifications.
