NKK Switches
YB16WSKG01-2CF12-JB
Switch Push Button ON ON SPDT Square Button 0.1A 28VAC 28VDC 0.4VA Alternate Contact Quick Connect/Solder Lug Panel Mount
MountingBushing, Panel, Front
Quick Jump:
Technical Specifications
NKK Switches YB16WSKG01-2CF12-JB technical specifications.
General
Actuator Type
Square, Button
Contact Plating
Gold
Electrical Life
100000Cycles
Flammability Rating
UL94 V-0
Illumination Color
Green, Red
Illumination Type
LED
Max Operating Temperature
50°C
Mechanical Life
200000Cycles
Min Operating Temperature
-25°C
Mount
Bushing, Panel, Front
Packaging
Bulk
Ratings
IP65, Water Resistant, Dust Tight
RoHS Compliant
Yes
Series
YB
Switch Function
On-On
Termination
Solder
Throw Configuration
SPDT
Voltage Rating (AC)
28V
DC Rated Voltage
28V
Compliance
RoHS
Compliant
Datasheet
NKK Switches YB16WSKG01-2CF12-JB Datasheet
Download the complete datasheet for NKK Switches YB16WSKG01-2CF12-JB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

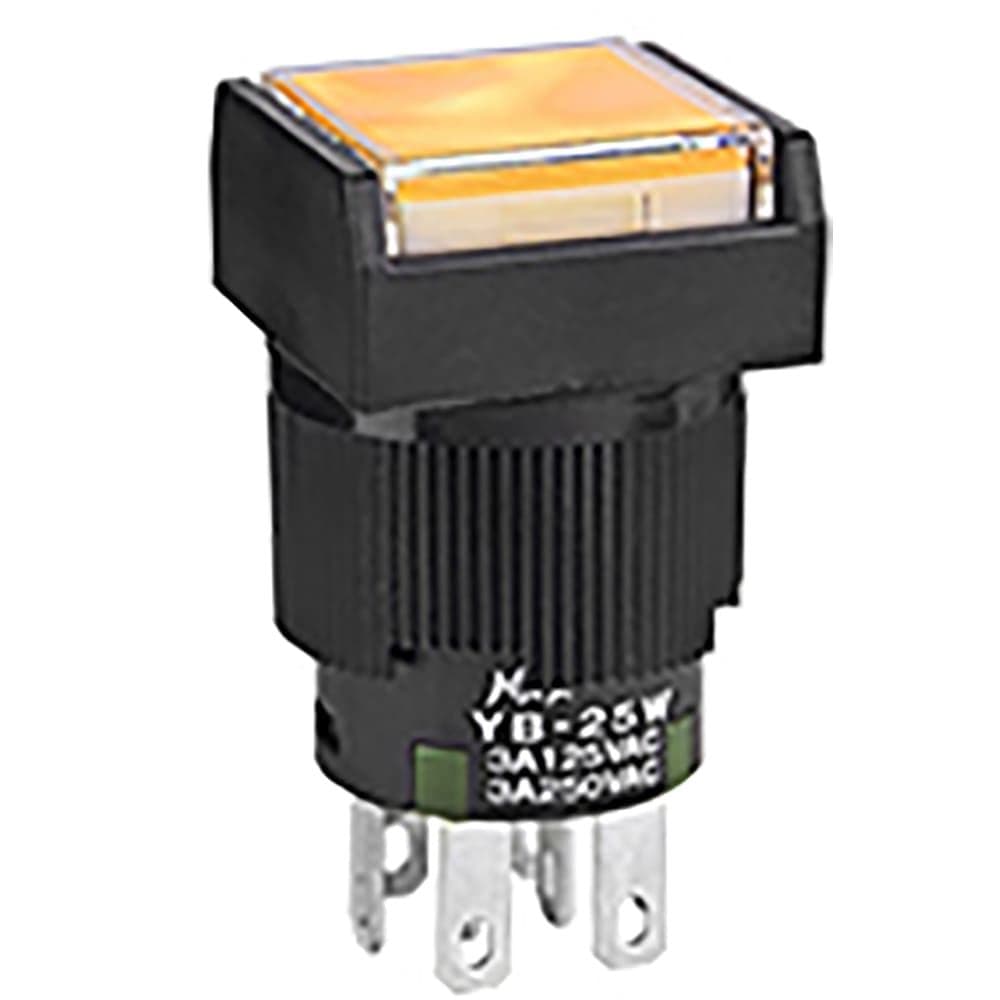

Product Images
