NKK Switches
YB216CWCKW01-5D-JS
Switch Push Button ON ON SPDT Flush Round Button 3A 250VAC 30VDC Alternate Contact Panel Mount Quick Connect/Solder Lug
Current Rating3A
MountingPanel, Front
Quick Jump:
Technical Specifications
NKK Switches YB216CWCKW01-5D-JS technical specifications.
General
Actuator Type
Round, Button, Flush
Contact Plating
Silver
Current Rating
3A
Electrical Life
100000Cycles
Illumination Color
Orange
Illumination Type
LED
Life (Hours)
100000Hour
Max Operating Temperature
50°C
Mechanical Life
200000Cycles
Min Operating Temperature
-25°C
Mount
Panel, Front
Package Quantity
1
Packaging
Bulk
Ratings
IP65, Water Resistant, Dust Tight
RoHS Compliant
Yes
Series
YB2
Switch Function
On-On
Termination
Solder
Throw Configuration
SPDT
Voltage Rating (AC)
125V
DC Rated Voltage
30V
Compliance
RoHS
Compliant
Datasheet
NKK Switches YB216CWCKW01-5D-JS Datasheet
Download the complete datasheet for NKK Switches YB216CWCKW01-5D-JS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

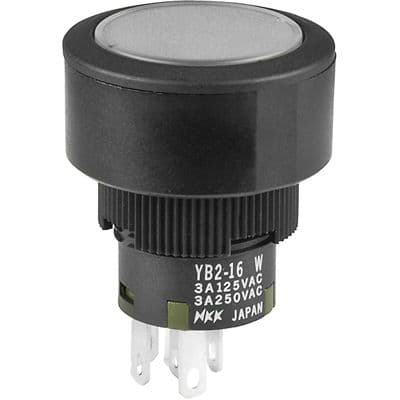

Product Images
