2.4GHz RF transceiver with a data rate up to 2Mbps. Features a 0dBm output power and -94dBm sensitivity, operating from 1.9 to 3.6 VDC. Includes I2C, SPI, and UART interfaces, 31 GPIO pins, and 1KB of memory. Packaged in a QFN with a temperature range of -40°C to 85°C.
Frequency2.4GHz
PackageQFN
Quick Jump:
Technical Specifications
Nordic Semiconductor nRF24LE1-F16Q48-T technical specifications.
General
Package/Case
QFN
Current - Receiving
13.3mA
Current - Transmitting
11.1mA
Data Rate
2Mbps
Frequency
2.4GHz
Interface
I2C, SPI, UART
Max Operating Temperature
85°C
Memory Size
1KB
Min Operating Temperature
-40°C
Number of GPIO
31
Operating Supply Voltage
3.6V
Output Power (dBm)
0dBm
Package Quantity
260
Packaging
Tray
Sensitivity
-94dBm
Compliance
RoHS
Compliant
Datasheet
Nordic Semiconductor nRF24LE1-F16Q48-T Datasheet
Download the complete datasheet for Nordic Semiconductor nRF24LE1-F16Q48-T to view detailed technical specifications.
No datasheet is available for this part.

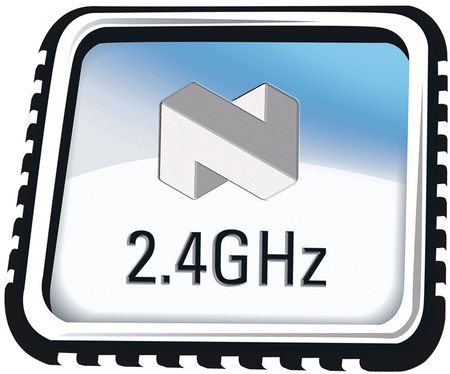

Product Images
