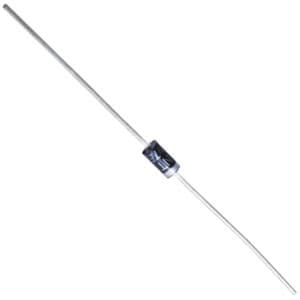

This Schottky barrier rectifier is rated for 30 V repetitive reverse voltage and 1.0 A average forward rectified current. It is supplied in a DO-41 axial-leaded package and supports 25 A non-repetitive peak surge current. Maximum forward voltage is 550 mV at 1 A, and total capacitance is 110 pF at 4 V and 1 MHz. The device operates over a -65°C to +125°C junction temperature range and has 1.25 W power dissipation.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the NTE Electronics 1N5818 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Capacitance | 110pF |
| Current Rating | 1A |
| Lead Free | Lead Free |
| Output Current | 1A |
| Packaging | Cut Tape |
| Polarity | Standard |
| Reach SVHC Compliant | Yes |
| RoHS Compliant | Yes |
| DC Rated Voltage | 30V |
| RoHS | Compliant |
