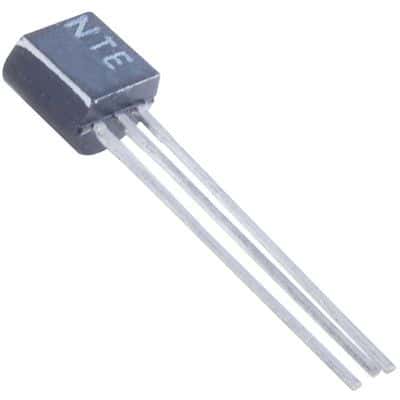

The NTE Electronics 2N3906 is a PNP transistor with a collector-emitter breakdown voltage of 40V and a maximum collector current of 200mA. It is packaged in a TO-226-3 case and is designed for through-hole mounting. The transistor has a maximum power dissipation of 625mW and an operating temperature range of -55°C to 150°C. The device is RoHS compliant and has a transition frequency of 250MHz.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the NTE Electronics 2N3906 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
NTE Electronics 2N3906 technical specifications.
| Package/Case | TO-226-3 |
| Collector Emitter Breakdown Voltage | 40V |
| Collector Emitter Voltage (VCEO) | 80V |
| Collector-emitter Voltage-Max | 400mV |
| Max Collector Current | 200mA |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 625mW |
| Mount | Through Hole |
| Packaging | Bulk |
| Polarity | PNP |
| Power Dissipation | 625mW |
| RoHS Compliant | Yes |
| Transition Frequency | 250MHz |
| RoHS | Compliant |
