NTE ELECTRONICS HW110 RESISTOR, 100 OHM, 500mW, 0.02, AXIAL
PackageAxial
Resistance100R
Voltage Rating350V
MountingThrough Hole
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the NTE Electronics HW110 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
NTE Electronics HW110 technical specifications.
General
| Package/Case | Axial |
| Max Operating Temperature | 155°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 500mW |
| Mount | Through Hole |
| Number of Terminations | 2 |
| Reach SVHC Compliant | No |
| Resistance | 100R |
| Resistance Tolerance | 2% |
| Resistor Type | Metal Film |
| RoHS Compliant | Yes |
| Termination | Axial |
| Tolerance | 2% |
| Voltage Rating | 350V |
| DC Rated Voltage | 350V |
Compliance
| RoHS | Compliant |
Datasheet
NTE Electronics HW110 Datasheet
Download the complete datasheet for NTE Electronics HW110 to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

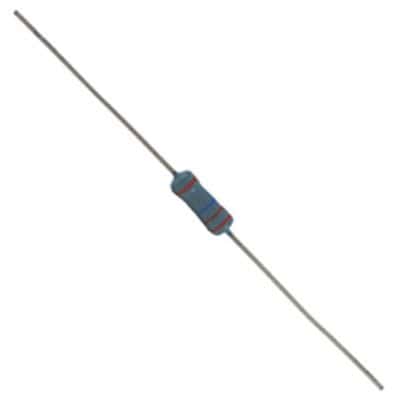

Product Images
