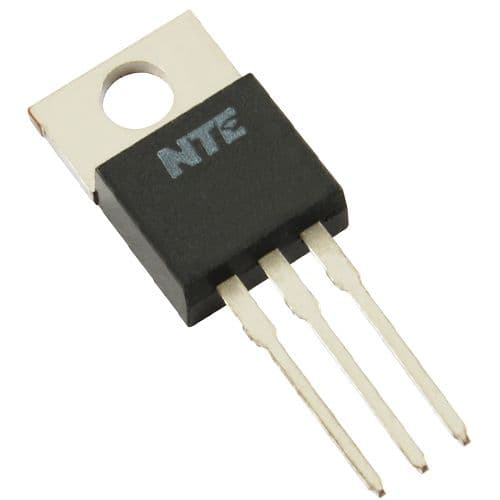

The NTE235 is a TO-220 packaged NPN RF transistor with a collector base voltage rating of 80V and a maximum collector current of 3A. It has a collector emitter breakdown voltage of 75V and a collector emitter saturation voltage of 600mV. The transistor is designed for high frequency operation with a maximum frequency of 150MHz and a transition frequency of 150MHz. It is suitable for use in applications where high power dissipation is required, with a maximum power dissipation of 1.2W. The NTE235 is RoHS compliant and has a minimum operating temperature of -55°C and a maximum operating temperature of 150°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the NTE Electronics NTE235 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
NTE Electronics NTE235 technical specifications.
| Package/Case | TO-220 |
| Collector Base Voltage (VCBO) | 80V |
| Collector Emitter Breakdown Voltage | 75V |
| Collector Emitter Saturation Voltage | 600mV |
| Collector Emitter Voltage (VCEO) | 75V |
| Emitter Base Voltage (VEBO) | 5V |
| Height | 15.49mm |
| Length | 10.67mm |
| Max Collector Current | 3A |
| Max Frequency | 150MHz |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 1.2W |
| Mount | Through Hole |
| Polarity | NPN |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Transition Frequency | 150MHz |
| RoHS | Compliant |
