NTE Electronics
NTE280
Power Bipolar Transistor, 12A I(C), 140V V(BR)CEO, 1-Element, NPN, Silicon, TO-3, Metal, 2 Pin,
PackageTO-3
Current Rating12A
MountingThrough Hole
PolarityNPN
Quick Jump:
Technical Specifications
NTE Electronics NTE280 technical specifications.
General
Package/Case
TO-3
Collector Base Voltage (VCBO)
140V
Collector Emitter Breakdown Voltage
140V
Collector Emitter Saturation Voltage
3V
Collector Emitter Voltage (VCEO)
140V
Collector-emitter Voltage-Max
3V
Current Rating
12A
Diameter
22.2mm
Emitter Base Voltage (VEBO)
5V
Height
0.35inch
Max Collector Current
100uA
Max Operating Temperature
150°C
Min Operating Temperature
-65°C
Max Power Dissipation
100W
Mount
Through Hole
Polarity
NPN
Power Dissipation
100W
Reach SVHC Compliant
No
RoHS Compliant
Yes
Transition Frequency
5MHz
DC Rated Voltage
140V
Compliance
RoHS
Compliant
Datasheet
NTE Electronics NTE280 Datasheet
Download the complete datasheet for NTE Electronics NTE280 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

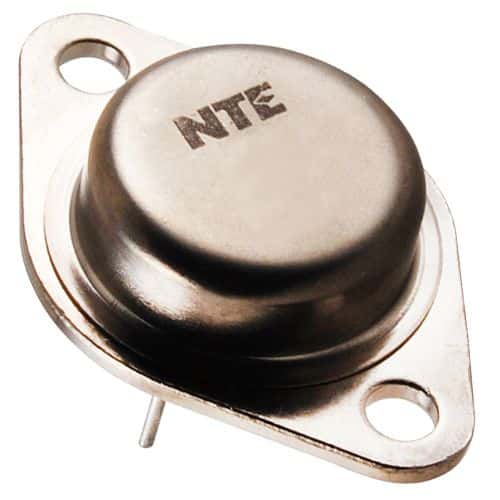

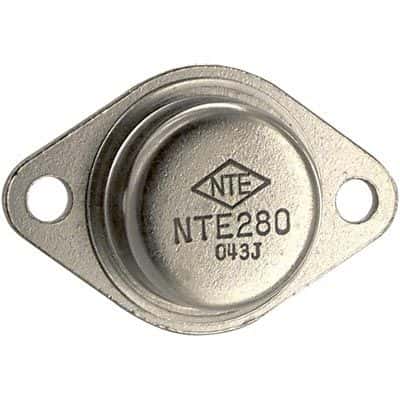

Product Images
