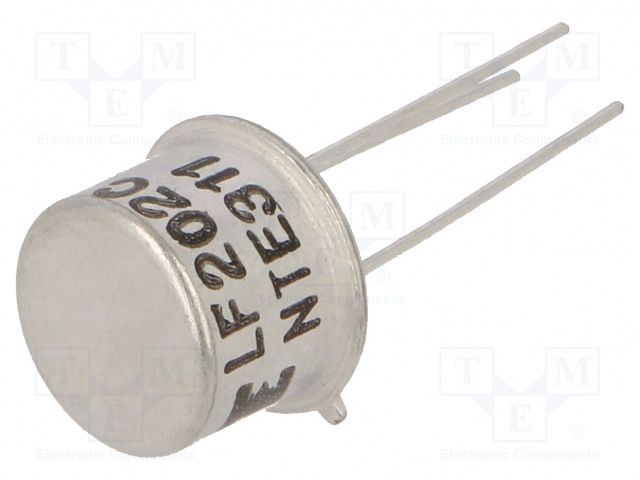

The NTE311 is a NPN RF transistor with a collector base voltage of 55V and a collector emitter breakdown voltage of 30V. It has a maximum collector current of 400mA and a maximum power dissipation of 5W. The transistor is packaged in a TO-39 case and is suitable for through hole mounting. It operates over a temperature range of -65°C to 200°C and is compliant with RoHS regulations.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the NTE Electronics NTE311 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | TO-39 |
| Collector Base Voltage (VCBO) | 55V |
| Collector Emitter Breakdown Voltage | 30V |
| Collector Emitter Saturation Voltage | 1V |
| Collector Emitter Voltage (VCEO) | 55V |
| Diameter | 9.39mm |
| Emitter Base Voltage (VEBO) | 3.5V |
| Gain | 10dB |
| Height | 0.26inch |
| Max Collector Current | 400mA |
| Max Operating Temperature | 200°C |
| Min Operating Temperature | -65°C |
| Max Power Dissipation | 5W |
| Mount | Through Hole |
| Polarity | NPN |
| Power Dissipation | 5W |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Transition Frequency | 800MHz |
| RoHS | Compliant |
