The NTE5329 is a bridge rectifier with a maximum operating temperature of 150°C and a minimum operating temperature of -50°C. It can handle a maximum repetitive reverse voltage of 200V and a maximum reverse current of 5uA. The device is mounted through a hole and packaged in a SIP format. The NTE5329 is RoHS compliant but not SVHC compliant.
PackageSIP
MountingThrough Hole
Quick Jump:
Technical Specifications
NTE Electronics NTE5329 technical specifications.
General
| Average Rectified Current | 6A |
| Package/Case | SIP |
| Forward Current | 6A |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -50°C |
| Max Repetitive Reverse Voltage (Vrrm) | 200V |
| Max Reverse Current | 5uA |
| Mount | Through Hole |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
NTE Electronics NTE5329 Datasheet
Download the complete datasheet for NTE Electronics NTE5329 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

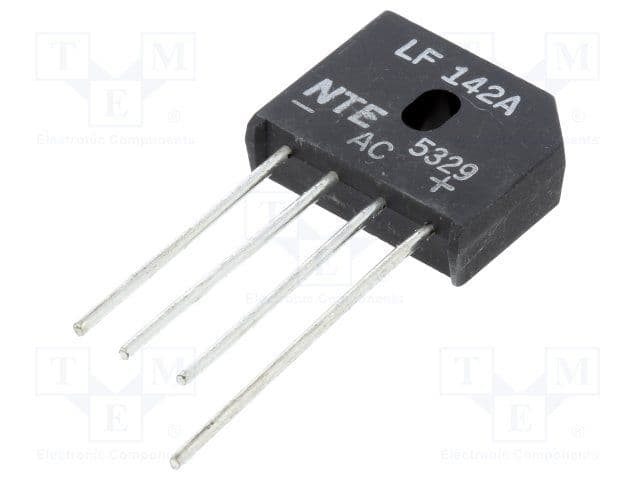

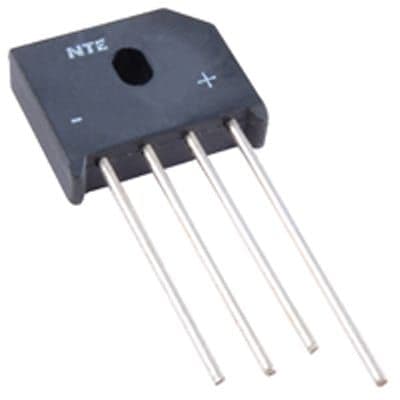

Product Images
