The NTE6218 is a general purpose rectifier diode with a maximum operating temperature of 150°C and a minimum operating temperature of -55°C. It can handle a maximum forward surge current of 2kA and a maximum repetitive reverse voltage of 600V. The diode has a reverse recovery time of 95ns and is RoHS compliant. It is designed for chassis mount applications and can handle a maximum forward current of 200A.
PackageModule
MountingChassis Mount, Screw
Quick Jump:
Technical Specifications
NTE Electronics NTE6218 technical specifications.
General
| Average Rectified Current | 100A |
| Package/Case | Module |
| Forward Current | 200A |
| Max Forward Surge Current (Ifsm) | 2kA |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Repetitive Reverse Voltage (Vrrm) | 600V |
| Max Reverse Current | 5uA |
| Mount | Chassis Mount, Screw |
| Peak Non-Repetitive Surge Current | 2kA |
| Reverse Recovery Time | 95ns |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
NTE Electronics NTE6218 Datasheet
Download the complete datasheet for NTE Electronics NTE6218 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

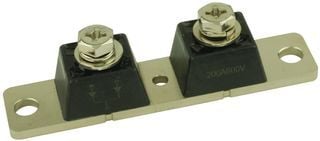

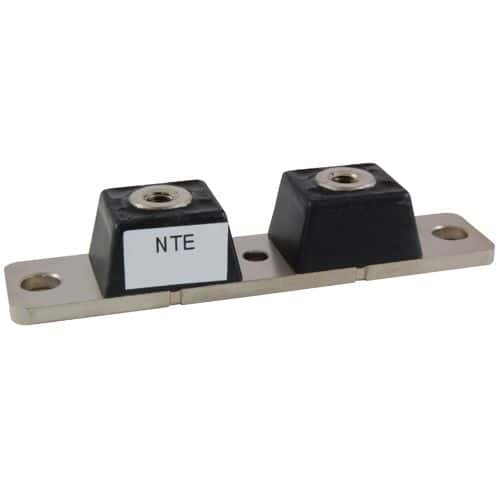

Product Images
