Technical Specifications
NVE IL611A-3E technical specifications.
General
Package/Case
SOIC
Channel Type
Unidirectional
Data Rate
10Mbps
Depth
6.2mm
Isolated Power
No
Isolation Voltage
2.5kV
Lead Free
Lead Free
Length
5mm
Max Input Current
75mA
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Surface Mount
Nominal Supply Current
4mA
Number of Channels
2
Output Current
4mA
Package Quantity
100
Packaging
Rail/Tube
Propagation Delay
25ns
RoHS Compliant
Yes
Series
IsoLoop®
Type
General Purpose
Width
1.75mm
Compliance
RoHS
Compliant
Datasheet
NVE IL611A-3E Datasheet
Download the complete datasheet for NVE IL611A-3E to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

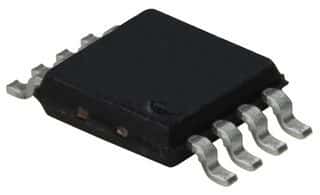

Product Images
