General purpose analog circuit, featuring 1 channel and CMOS technology. This integrated circuit offers a 110Mbps data rate and 2.5kV isolation voltage. Designed for through-hole mounting in a DIP package, it operates from a 3V to 5.5V supply voltage with a nominal supply current of 10uA. Key performance metrics include a 10ns propagation delay and 3ns pulse width distortion, with an output current of 5mA.
PackageDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
NVE IL710-2E technical specifications.
General
| Package/Case | DIP |
| Channel Type | Unidirectional |
| Data Rate | 110Mbps |
| Depth | 6.6mm |
| Isolated Power | No |
| Isolation Voltage | 2.5kV |
| Lead Free | Lead Free |
| Length | 10.2mm |
| Max Input Current | 15uA |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 3V |
| Mount | Through Hole |
| Nominal Supply Current | 10uA |
| Number of Channels | 1 |
| Output Current | 5mA |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Propagation Delay | 10ns |
| Pulse Width Distortion (PWD) | 3ns |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | IsoLoop® |
| Type | General Purpose |
| Width | 3.81mm |
Compliance
| RoHS | Compliant |
Datasheet
NVE IL710-2E Datasheet
Download the complete datasheet for NVE IL710-2E to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

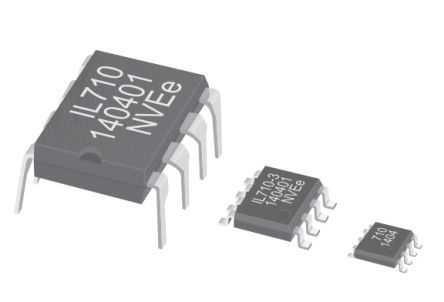

Product Images
