Technical Specifications
NXP 74HC175PW,112 technical specifications.
General
| Package/Case | SOT-403 |
| Clock Edge Trigger Type | Positive Edge |
| Frequency | 24MHz |
| High Level Output Current | -5.2mA |
| Input Type | SINGLE-ENDED |
| Logic Function | D-Type, Flip-Flop |
| Low Level Output Current | 5.2mA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 6V |
| Min Supply Voltage | 2V |
| Mount | Surface Mount |
| Number of Bits | 4 |
| Number of Circuits | 1 |
| Number of Elements | 1 |
| Number of Input Lines | 4 |
| Number of Output Lines | 4 |
| Operating Supply Voltage | 5V |
| Package Quantity | 2400 |
| Packaging | Rail/Tube |
| Polarity | Non-Inverting |
| Propagation Delay | 17ns |
| RoHS Compliant | Yes |
| Technology | CMOS |
| Turn-On Delay Time | 265ns |
Compliance
| RoHS | Compliant |
Datasheet
NXP 74HC175PW,112 Datasheet
Download the complete datasheet for NXP 74HC175PW,112 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

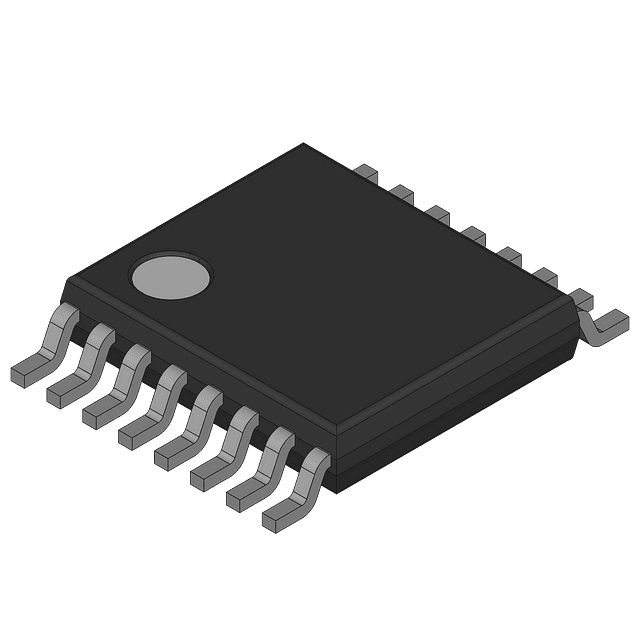

Product Images
