Technical Specifications
NXP 74HC4851BQ,115 technical specifications.
General
| Lead Free | Lead Free |
| Logic Function | Multiplexer, Demultiplexer |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 500mW |
| Max Supply Voltage | 6V |
| Min Supply Voltage | 2V |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Inputs | 8 |
| Number of Outputs | 1 |
| Number of Switches | 1 |
| On-State Resistance | 195R |
| Operating Supply Current | 2uA |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Power Dissipation | 500mW |
| Propagation Delay | 3ns |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | 74HC |
| Supply Type | Single |
Compliance
| RoHS | Compliant |
Datasheet
NXP 74HC4851BQ,115 Datasheet
Download the complete datasheet for NXP 74HC4851BQ,115 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

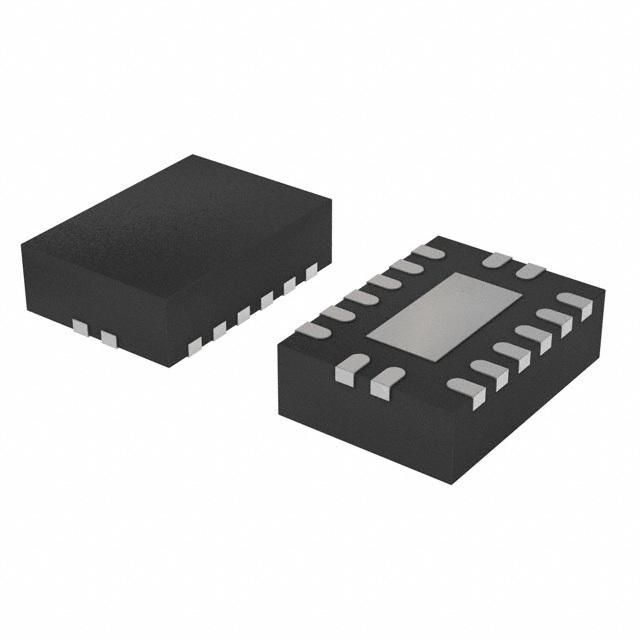

Product Images
