The 74HCT164BQ,115 is an 8-bit shift register with 4 inputs, designed for operation at a maximum temperature of 125°C. It is a CMOS logic device with a nominal supply voltage of 5.5V and an operating supply voltage of 5V. The device is available in a surface mount package and is compliant with RoHS regulations. The 74HCT164BQ,115 has a propagation delay of 57ns and is suitable for use in a variety of applications requiring data transfer and storage.
MountingSurface Mount
Quick Jump:
Technical Specifications
NXP 74HCT164BQ,115 technical specifications.
General
| Lead Free | Lead Free |
| Logic Function | Shift Register |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Number of Bits | 8 |
| Number of Bits per Element | 8 |
| Number of Elements | 1 |
| Number of Inputs | 4 |
| Operating Supply Voltage | 5V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Propagation Delay | 57ns |
| RoHS Compliant | Yes |
| Series | 74HCT |
| Supply Voltage-Nom | 5.5V |
| Technology | CMOS |
Compliance
| RoHS | Compliant |
Datasheet
NXP 74HCT164BQ,115 Datasheet
Download the complete datasheet for NXP 74HCT164BQ,115 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

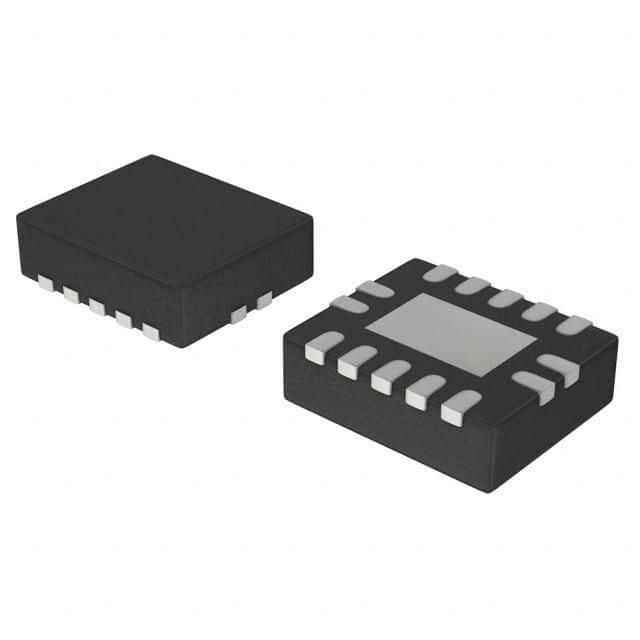

Product Images
