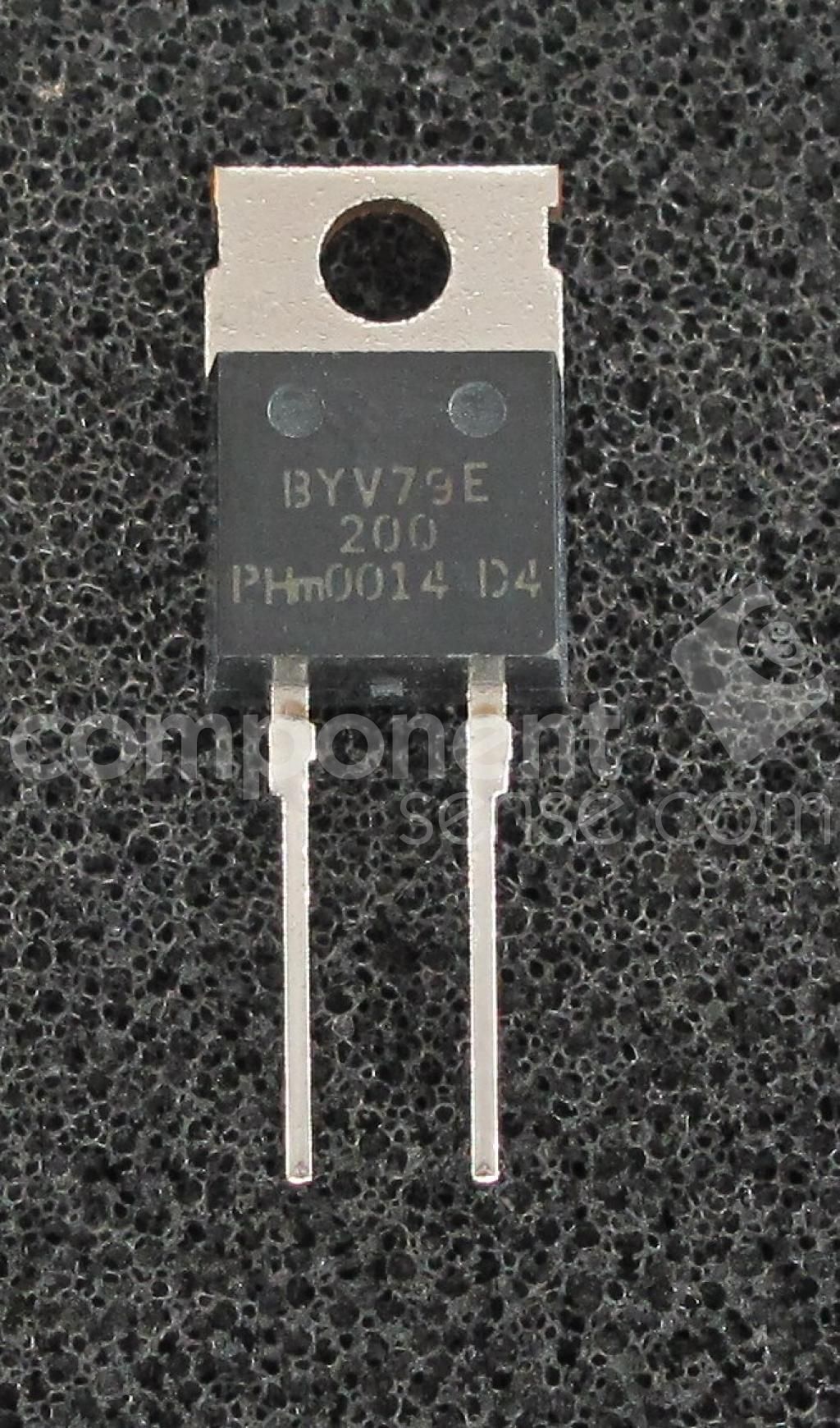

The BYV79E-200 diode rectifier from NXP has a maximum operating temperature of 150°C and a minimum operating temperature of -40°C. It features a maximum repetitive reverse voltage of 200V and a maximum reverse current of 50uA. The diode is packaged in a TO-220AC case and is mounted through a hole. It is lead-free and RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the NXP BYV79E-200 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | TO-220AC |
| Current | 14A |
| Current Rating | 14A |
| Forward Current | 14A |
| Height | 9.4mm |
| Lead Free | Lead Free |
| Length | 10.3mm |
| Max Forward Surge Current (Ifsm) | 160A |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Max Repetitive Reverse Voltage (Vrrm) | 200V |
| Max Reverse Current | 50uA |
| Mount | Through Hole |
| Output Current | 14A |
| Peak Non-Repetitive Surge Current | 160A |
| Polarity | Standard |
| Radiation Hardening | No |
| Reverse Recovery Time | 30ns |
| RoHS Compliant | Yes |
| Voltage | 150V |
| DC Rated Voltage | 200V |
| Width | 4.7mm |
| RoHS | Compliant |
